Caterpillar

315D L

Excavator

Operating Weight
38,096 lb
Max Digging Depth
226 in
Max Digging Depth
240 in
Net Power
115.0 hp
All excavators

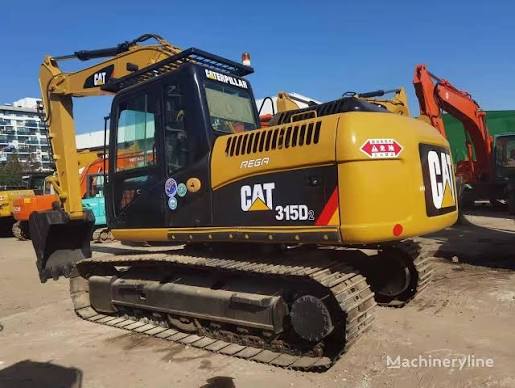

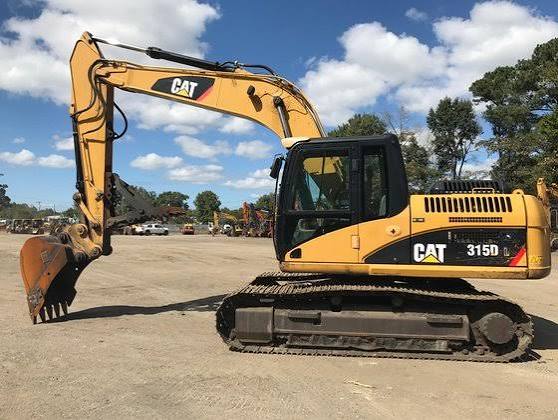

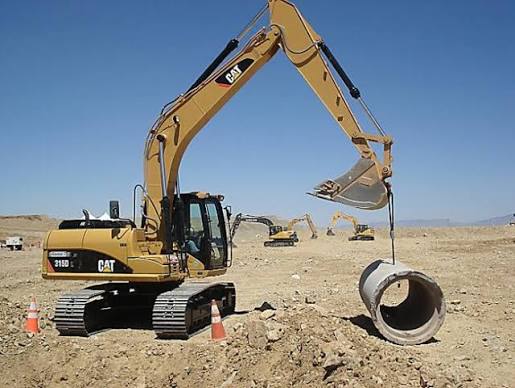

Caterpillar 315D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

55 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,096 lb
Fuel Capacity79.3 gal
Hydraulic Pump Flow Capacity39.7 gal/min
Hydraulic System Fluid Capacity50.2 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity5.9 gal
Swing Drive Fluid Capacity0.8 gal

Engine

Engine specifications
Engine ModelC4.2 ACERT
Displacement259 in³
Gross Power122.0 hp
Net Power115.0 hp
Flywheel Power117.0 hp

Weights

Weights specifications
Operating Weight36,817 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab114 in
Length of Track on Ground126 in
Tail Swing Radius100 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.5 mph
Shoe Size24 in
Drawbar Pull35,295 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth226 in
Max Reach Along Ground360 in
Max Loading Height243 in
Max Vertical Wall Digging Depth194 in
Max Cutting Height344 in
Shipping Length of Unit336 in
Shipping Height of Unit117 in

Bucket

Bucket specifications
Reference Bucket Capacity0.80 yd³
Maximum Bucket Capacity1.20 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth240 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height352 in
Max Loading Height93 in
Max Reach Along Ground346 in
Shipping Length of Unit337 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth251 in
Max Cutting Height350 in
Max Loading Height250 in
Max Vertical Wall Digging Depth211 in
Max Reach Along Ground353 in
Shipping Length of Unit337 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth259 in
Max Cutting Height354 in
Max Reach Along Ground365 in
Max Loading Height260 in
Max Vertical Wall Dig Depth230 in
Shipping Length of Unit337 in
