Komatsu

PC170LC-10

Excavator

Operating Weight
38,096 lb
Max Digging Depth
222 in
Max Digging Depth
235 in
Net Power
115.0 hp
All excavators

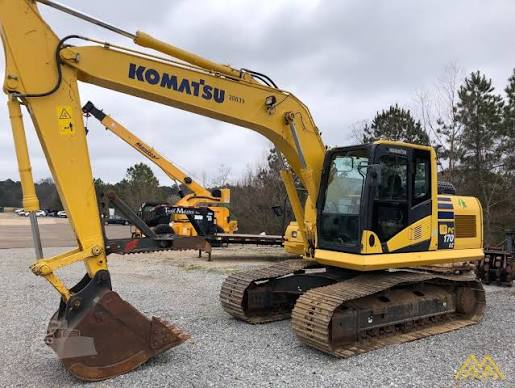

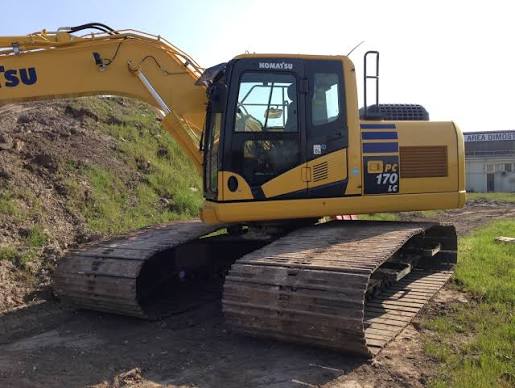

Komatsu PC170LC-10 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Operating Weight38,096 lb
Hydraulic Pump Flow Capacity78.8 gal/min
Operating Voltage24 V

Engine

Engine specifications
Engine ModelSAA4D107E-2A
Displacement272 in³
Power Measured @2,100 rpm
Gross Power121.0 hp
Net Power115.0 hp
AspirationTurbocharged
Engine MakeKomatsu
Bore4 in
Stroke5 in
Max Digging Reach364 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab120 in
Length of Track on Ground172 in
Tail Swing Radius100 in
Removal Counterweight Clearance42 in
Track Gauge79 in
Track length156 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side44
Number of Carrier Rollers per Side2
Drawbar Pull35,164 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank79.3 gal
Engine Oil4.8 gal
Swing drive1.2 gal
Final Drive1.5 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground364 in
Max Vertical Wall Digging Depth192 in
Minimum swing radius120 in
Max Digging Reach342 in
Max.Dumping Height248 in
Max Digging Reach on Ground336 in
Bucket Digging Force - SAE24,471 lb
Max Digging Height352 in
Arm Crowd Force - SAE20,503 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth235 in
Max Vertical Wall Digging Depth199 in
Minimum swing radius118 in
Max Digging Reach353 in
Max.Dumping Height251 in
Max Digging Reach on Ground347 in
Bucket Digging Force - SAE24,471 lb
Max. digging height354 in
Arm Crowd Force-SAE18,739 lb

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth247 in
Max Vertical Wall Digging Depth210 in
Max Reach Along Ground357 in
Minimum swing radius118 in
Max.Dumping Height258 in
Bucket Digging Force - SAE24,471 lb
Arm Crowd Force-SAE17,417 lb
Max. digging height360 in
