John Deere

290D

Excavator

Operating Weight
20,742 lb
Max Digging Depth
181 in
Max Digging Depth
203 in
Net Power
65.0 hp
All excavators

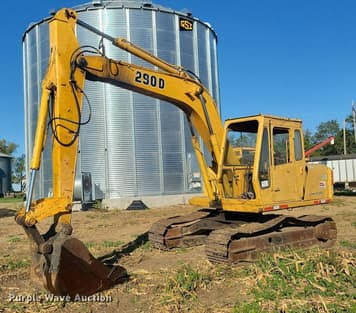

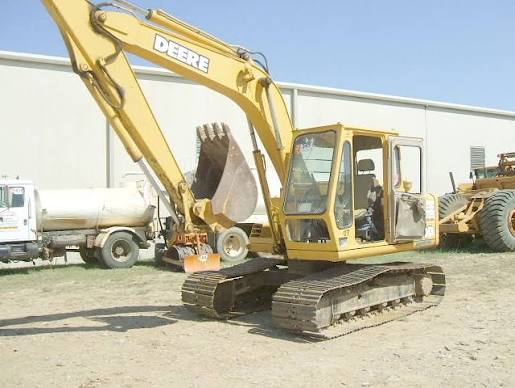

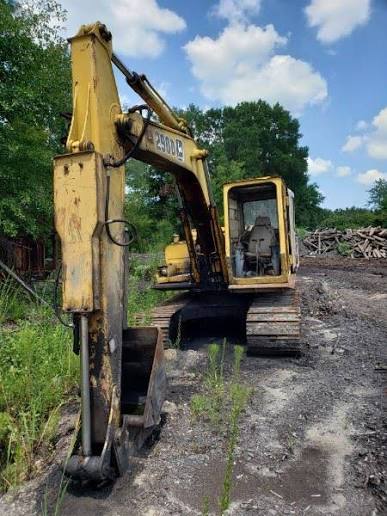

John Deere 290D Excavator
1 / 5
Image 1 of 5
Image: showroom.auction123.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,742 lb
Fuel Capacity66.0 gal
Hydraulic Pump Flow Capacity29.1 gal/min
Hydraulic System Fluid Capacity29.0 gal
Hydraulic System Relief Valve Pressure3,980 psi
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity4.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.9 gal
Alternator Supplied Amperage42 A

Engine

Engine specifications
Engine Model4239D
Displacement239 in³
Power Measured @2,100 rpm
Gross Power68.0 hp
Net Power65.0 hp
Torque Measured @1,500 rpm
Max Torque343 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab103 in
Length of Track on Ground101 in
Tail Swing Radius77 in
Width to Outside of Tracks94 in
Removal Counterweight Clearance35 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge73 in
Number of Track Rollers per Side6
Max Travel Speed2.6 mph
Shoe Size20 in
Number of Shoes per Side43
Number of Carrier Rollers per Side1
Drawbar Pull13,670 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth181 in
Max Reach Along Ground272 in
Max Loading Height214 in
Max Vertical Wall Digging Depth156 in
Max Cutting Height306 in
Shipping Length of Unit271 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed15 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth203 in
Max Vertical Wall Digging Depth170 in
Max Cutting Height312 in
Max Loading Height220 in
Max Reach Along Ground288 in
Shipping Length of Unit271 in
Shipping Height of Unit103 in
