Liugong

CLG906C

Excavator

Operating Weight
13,007 lb
Max Digging Depth
154 in
Net Power
50.2 hp
All excavators

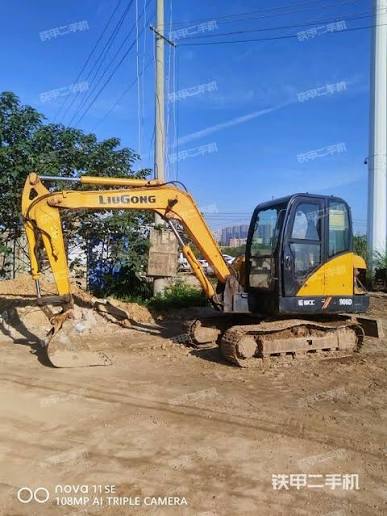

Liugong CLG906C Excavator
1 / 5
Image 1 of 5
Image: mea.liugong.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,007 lb
Hydraulic Pump Flow Capacity39.7 gal/min
Hydraulic System Relief Valve Pressure3,191 psi

Engine

Engine specifications
Engine Model4TNV94L-PLY
Displacement183 in³
Power Measured @2,100 rpm
Net Power50.2 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius67 in
Width to Outside of Tracks76 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.3 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth154 in
Max Reach Along Ground239 in
Max Loading Height163 in
Max Vertical Wall Digging Depth117 in
Shipping Length of Unit233 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
