John Deere
304H Waste Handler
- Operating Weight
- 13,880 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 69.0 hp
- Net Power
- 65.0 hp
1 / 5

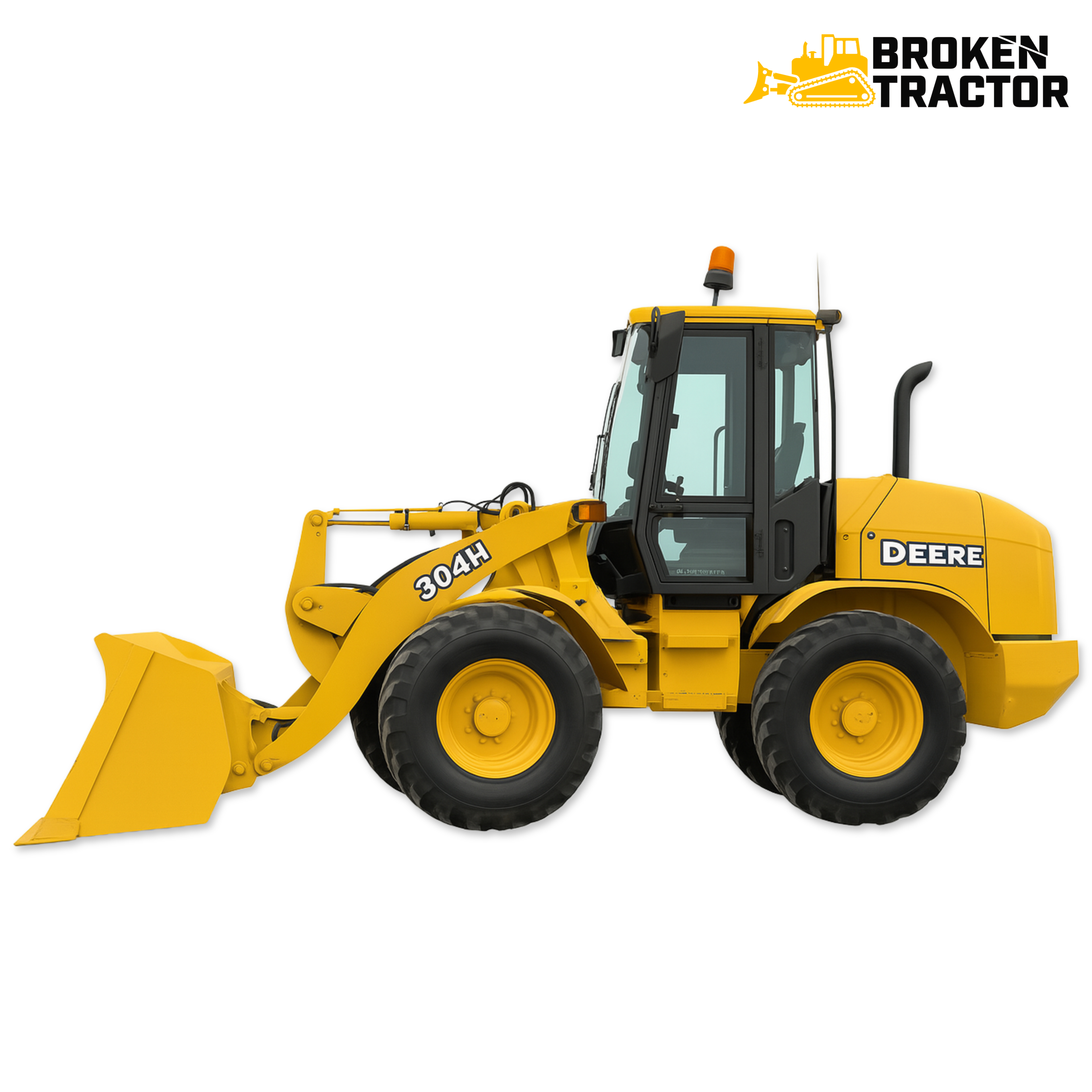

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 13,880 lb |
|---|---|
| Fuel Capacity | 18.5 gal |
| Tire Size | 40x 14-16 |
| Hydraulic System Fluid Capacity | 11.9 gal |
| Static Tipping Weight | 8,986 lb |
| Operating Voltage | 12 V |
| Turning Radius | 128 in |
| Engine Oil Fluid Capacity | 2.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 1.6 gal |
| Rear Axle/Diff Fluid Capacity | 1.3 gal |
| Cooling System Fluid Capacity | 3.3 gal |
Engine
| Engine Model | 4TNE98 |
|---|---|
| Displacement | 202 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 69.0 hp |
| Net Power | 65.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 22.0 gal/min |
|---|---|
| Raise Time | 4.5 s |
| Lower Time | 3.8 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 108 in |
| Wheelbase | 85 in |
| Width Over Tires | 78 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 215 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 18.6 mph |
|---|---|
| Max Speed - Reverse | 18.6 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.80 yd³ |
| Dump Clearance at Max Raise | 96 in |
| Breakout Force | 10,410 lb |
| Bucket Width | 80 in |
