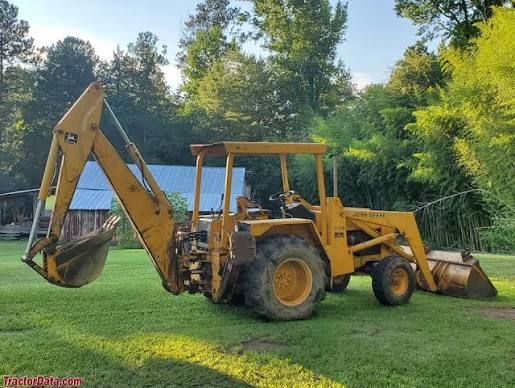

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Fuel Capacity | 19.5 gal |
|---|---|
| Hydraulic System Fluid Capacity | 20.5 gal |
| Cooling System Fluid Capacity | 3.1 gal |
| Tire Size Front - 2wd / 4wd | 7.50/8.00-16 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Max Weight | 13,200 lb |
Engine
| Displacement | 220 in³ |
|---|---|
| Power Measured @ | 2,500 rpm |
| Gross Power | 65.0 hp |
| Net Power | 62.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,300 rpm |
| Engine Make | John Deere |
| Bore | 4 in |
| Stroke | 4 in |
| Net Max Torque | 160 lb-ft |
Hydraulic System
| Pump Flow Capacity | 38.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,320 psi |
| Pump Type | Closed center |
Dimensions
| Wheelbase | 83 in |
|---|---|
| Transport Width | 83 in |
| Transport Length | 283 in |
| Rear Tread Range | 65 in |
| Front Wheel Tread Width | 58 in |
Transmission
| Max Speed | 16.5 mph |
|---|---|
| Max Speed - Reverse | 18.8 mph |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 8 |
| Transmission Type | Power shuttle |
Tires & Wheels
| Rear Tires Size | 16.9-24 |
|---|
Backhoe
| Dig Depth | 175 in |
|---|---|
| Reach From Swivel | 209 in |
| Bucket Dig Force | 9,600 lb |
Loader
| Clearance at Max Dump Height | 106 in |
|---|---|
| Bucket Breakout Force | 7,600 lb |
| Bucket Width | 89 in |
| Reach at Max Dump Height | 30 in |
