John Deere

318D

Skid Steer Loader

Operating Weight
6,450 lb
Max Speed
10.1 mph
All skid steer loaders

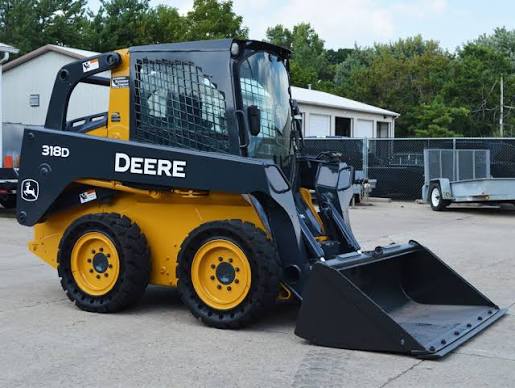

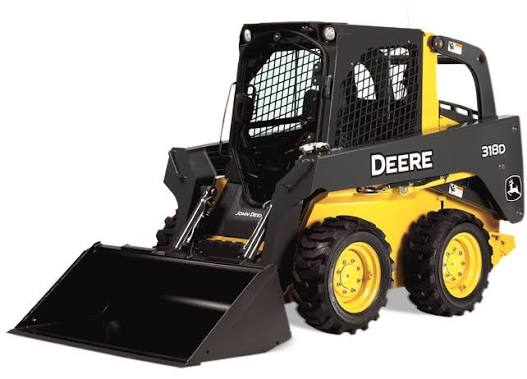

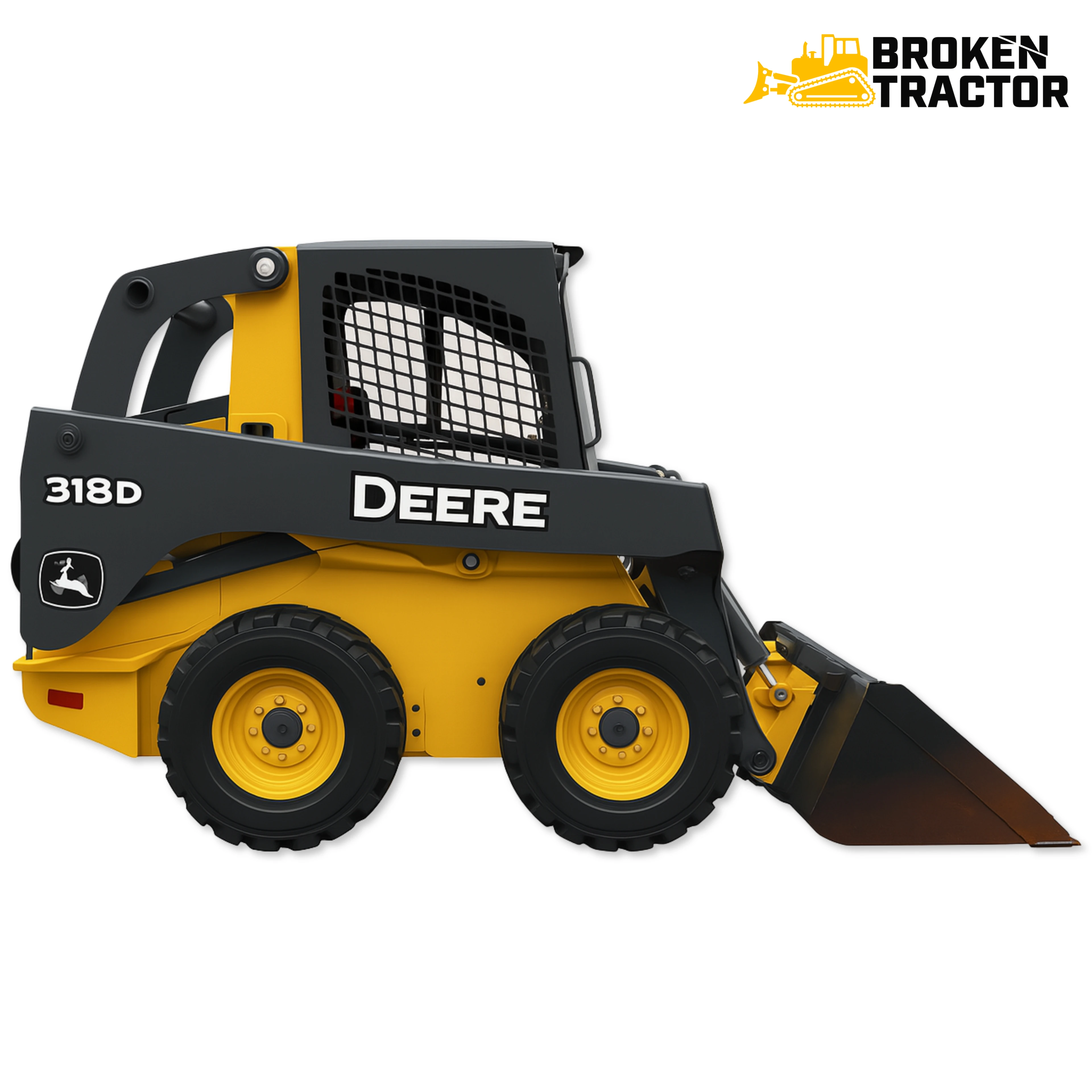

John Deere 318D Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,450 lb
Max Speed10.1 mph
Fuel Capacity18.5 gal
Hydraulic System Fluid Capacity18.0 gal
Tire Size10 x 16.5 8 PR Extra Wal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelE 4024HT
Displacement147 in³
Power Measured @2,300 rpm
Number of Cylinders4
AspirationTurbocharged and intercooled
Torque Measured @1,950 rpm
Engine MakeJohn Deere PowerTech
Air cleanerDry dual element
Emissions CertificationEPA Interim Tier 4/EU Stage IIIB
Net Torque162 lb-ft
Net Torque Rise—

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.0 gal/min
Hydraulic Horsepower-Standard Flow34.0 hp
Hydraulic Horsepower_High Flow54.0 hp
System Pressure at Couplers3,100 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Wheelbase43 in
Reach at Max Lift and Dump30 in
Height - Top of ROPS/FOPS78 in
Length w/o Bucket108 in
Angle of departure25 °
Length132 in
Hinge pin height, maximum height118 in
Turning Radius - TTS87078 in

Loader

Loader specifications
Operating Load Rating1,950 lb
Operating Width63 in
Tipping load (ISO 14397)3,600 lb
bucket breakout force (ISO 14397)5,125 lb
Width without Bucket64 in
Dump angle @ max. height42 °
Dump height95 in
Rollback - Ground Level32 °

Axles

Axles specifications
Tractive Effort7,315 lb-ft
Maximum Axle Torque4,450 lb-ft
