John Deere

329E

Compact Track Loader

Operating Weight
11,510 lb
Max Speed - high range
7.9 mph
Displacement
428 in³
Gross Power
85.9 hp
All compact track loaders

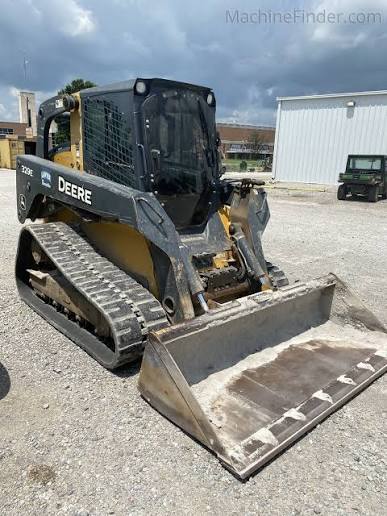

John Deere 329E Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,510 lb
Max Speed - high range7.9 mph
Max Speed - low range5.3 mph
Fuel Capacity25.5 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelCat C7.1 ACERT
Displacement428 in³
Power Measured @2,500 rpm
Gross Power85.9 hp
Net Power83.2 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,700 rpm
Engine MakeYanmar
Bore4 in
Stroke5 in
Peak Torque266 lb-ft
Gross Power - SAE J1995241.0 hp

Weights

Weights specifications
Operating Weight68,958 lb

Hydraulic System

Hydraulic System specifications
Pump Flow21.2 gal/min
Relief Valve Pressure3,450 psi
Hydraulic Horsepower-Standard Flow42.0 hp

Dimensions

Dimensions specifications
Ground Clearance10 in
Width Over Tracks17 in
Height - Top of ROPS/FOPS85 in
Turning Radius86 in
Length with Bucket145 in
Dump Height102 in
Length - without Bucket121 in
Dump angle45 °
Dump reach39 in
Hinge pin height, maximum height126 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5

Loader

Loader specifications
Operating Load2,904 lb
Breakout Force—
Tipping Load8,307 lb
Boom breakout force4,600 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System11.7 gal
Hydraulic Tank41.0 gal
