John Deere
330 LC
- Operating Weight
- 72,800 lb
- Max Digging Depth
- 268 in
- Max Digging Depth
- 288 in
- Net Power
- 235.0 hp
1 / 5

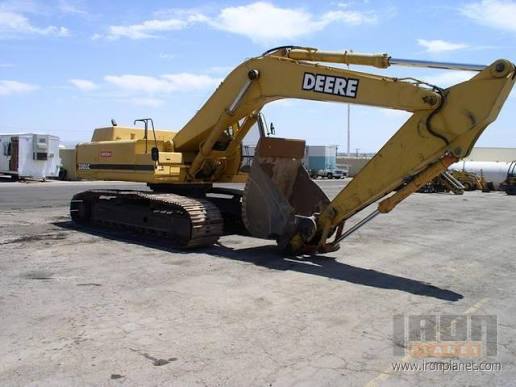

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 72,800 lb |
|---|---|
| Fuel Capacity | 148.0 gal |
| Hydraulic Pump Flow Capacity | 77.0 gal/min |
| Hydraulic System Fluid Capacity | 85.0 gal |
| Hydraulic System Relief Valve Pressure | 4,624 psi |
| Engine Oil Capacity | 7.4 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6081H |
|---|---|
| Displacement | 494 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 235.0 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,100 rpm |
| Max Torque | 940 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 56,086 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 268 in |
|---|---|
| Max Reach Along Ground | 406 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 219 in |
| Max Cutting Height | 388 in |
| Shipping Length of Unit | 437 in |
| Shipping Height of Unit | 137 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 288 in |
|---|---|
| Max Vertical Wall Digging Depth | 252 in |
| Max Cutting Height | 402 in |
| Max Loading Height | 284 in |
| Max Reach Along Ground | 427 in |
| Shipping Length of Unit | 432 in |
| Shipping Height of Unit | 128 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 319 in |
|---|---|
| Max Cutting Height | 417 in |
| Max Loading Height | 299 in |
| Max Vertical Wall Digging Depth | 288 in |
| Max Reach Along Ground | 361 in |
| Shipping Length of Unit | 434 in |
| Shipping Height of Unit | 141 in |
