John Deere

333D

Compact Track Loader

Operating Weight
11,109 lb
Max Speed - high range
7.9 mph
Displacement
183 in³
Gross Power
95.4 hp
All compact track loaders

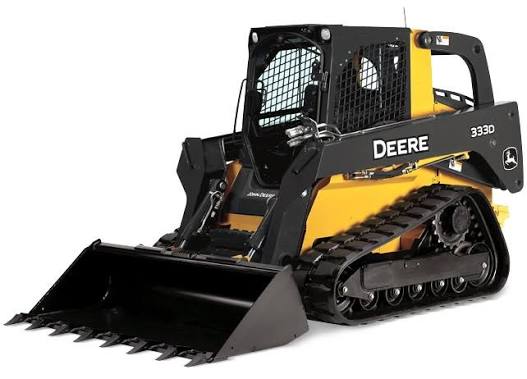

John Deere 333D Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,109 lb
Max Speed - high range7.9 mph
Max Speed - low range5.3 mph
Fuel Capacity29.4 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelE 5030HT
Displacement183 in³
Power Measured @2,400 rpm
Gross Power95.4 hp
Net Power89.5 hp
Number of Cylinders5
Torque Measured @1,950 rpm
Engine MakeJohn Deere
Peak Torque252 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow25.1 gal/min
Hydraulic Horsepower-Standard Flow53.0 hp

Dimensions

Dimensions specifications
Ground Clearance11 in
Reach at Max Lift and Dump32 in
Width Over Tracks81 in
Overall Height126 in
Turning Radius86 in
Length with Bucket143 in
Length - without Bucket119 in
Dump angle45 °

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Width of Track18 in
Number of Track Rollers per Side5

Loader

Loader specifications
Tipping Angle50 °
Operating Load4,729 lb
Tipping Load9,425 lb
Bucket Breakout Force13,875 lb
Boom breakout force673,528 lb
