John Deere

333E

Compact Track Loader

Operating Weight
11,810 lb
Max Speed - high range
7.9 mph
Displacement
189 in³
Gross Power
100.1 hp
All compact track loaders

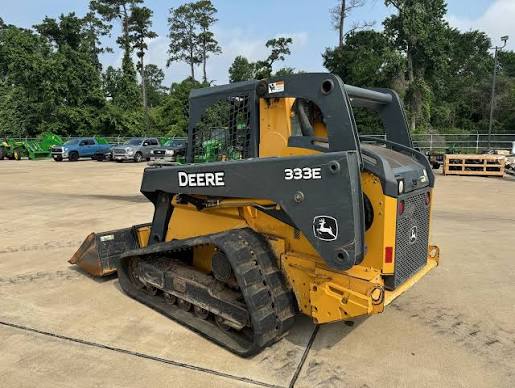

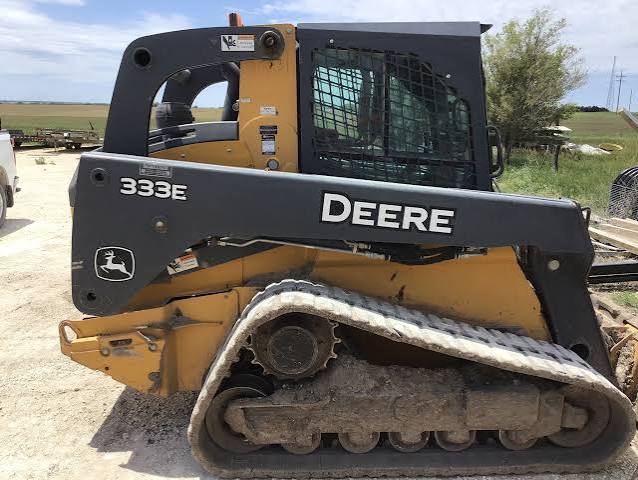

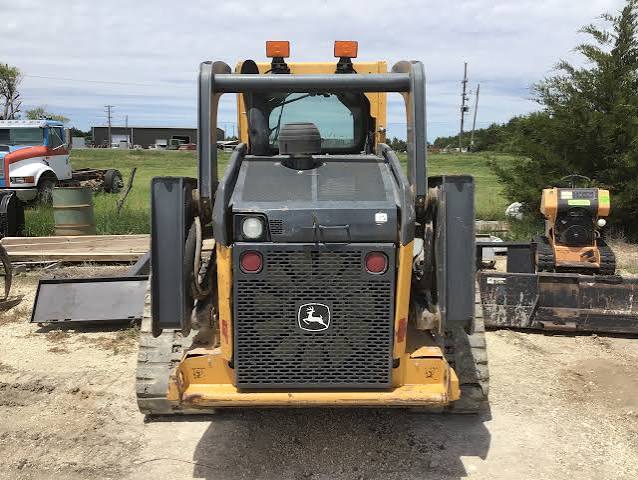

John Deere 333E Compact Track Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,810 lb
Max Speed - high range7.9 mph
Max Speed - low range5.3 mph
Fuel Capacity25.5 gal
Operating Voltage12 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model4TNV94CHT
Displacement189 in³
Power Measured @2,500 rpm
Gross Power100.1 hp
Net Power96.6 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,700 rpm
Engine MakeYanmar
Peak Torque291 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow25.1 gal/min
Relief Valve Pressure3,450 psi
Hydraulic Horsepower-Standard Flow50.1 hp

Dimensions

Dimensions specifications
Ground Clearance10 in
Width Over Tracks18 in
Height - Top of ROPS/FOPS85 in
Turning Radius86 in
Length with Bucket145 in
Dump Height102 in
Length - without Bucket121 in
Dump angle45 °
Dump reach39 in
Hinge pin height, maximum height126 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5

Loader

Loader specifications
Operating Load3,303 lb
Breakout Force—
Tipping Load9,434 lb
Boom breakout force6,600 lb
