John Deere

344L

Wheel Loader

Operating Weight
19,533 lb
Net Power
61.0 hp
All wheel loaders

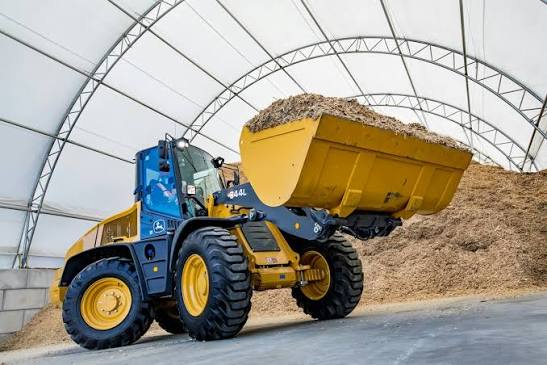

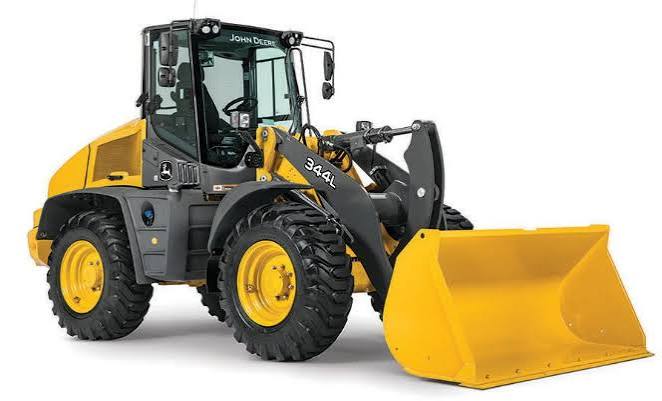

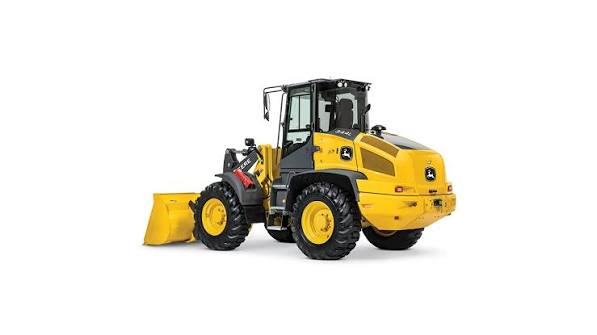

John Deere 344L Wheel Loader
1 / 5
Image 1 of 5
Image: ag-power.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,533 lb
Fuel Capacity41.0 gal
Tire Size17.5 R25
Front Axle/Diff Fluid Capacity2.0 gal
Rear Axle/Diff Fluid Capacity2.0 gal
Rated Bucket Capacity2.00 yd³

Engine

Engine specifications
Engine ModelPowerTech 4045T
Displacement275 in³
Net Power61.0 hp
Engine MakeJohn Deere
MakeDeere
Torque299 lb-ft
Alternator90 A
System Voltage12 V
Rated Speed2,000 rpm
Transmission TypeHydrostatic
Emission levelTier 4
PumpGear
Engine Output-Net103.0 hp

Weights

Weights specifications
Operating Weight19,533 lb

Dimensions

Dimensions specifications
Height - Top of Cab120 in
Wheelbase103 in
Width Over Tires94 in
Turning Circle355 in

Transmission

Transmission specifications
Pump Flow30.4 gal/min
System Pressure3,480 psi

Brakes & Steering

Brakes & Steering specifications
Service brakeDriveline
Parking brakeWet Disc
Brakes TypeWet Disc & Drum
ActuationHydraulic

Fluid Capacities

Fluid Capacities specifications
Hydraulic Tank30.4 gal
Transmission0.6 gal
Heaped Capacity2.00 yd³

Bucket

Bucket specifications
Bucket Capacity - Smallest2.00 yd³
Dump Clearance at Max Raise117 in
Breakout Force16,411 lb
Largest bucket capacity2.69 yd³

General Specifications

General Specifications specifications
Operating Weight19,533–20,393 (8,860–9,250) — Starting 2020 Model Year
Bucket Capacity2.0 - 2.6 (1.5 - 2.0) — Starting 2021 Model Year
Engine typeDeere PowerTech 4045T — Starting 2022 Model Year
Engine Power103 (76) — Starting 2019 Model Year
Max Dump Height9.6 (2.9) — Starting 2021 Model Year
