John Deere

35 ZTS

Mini Excavator

Operating Weight
7,782 lb
Max Digging Depth
125 in
Net Power
29.0 hp
All mini excavators

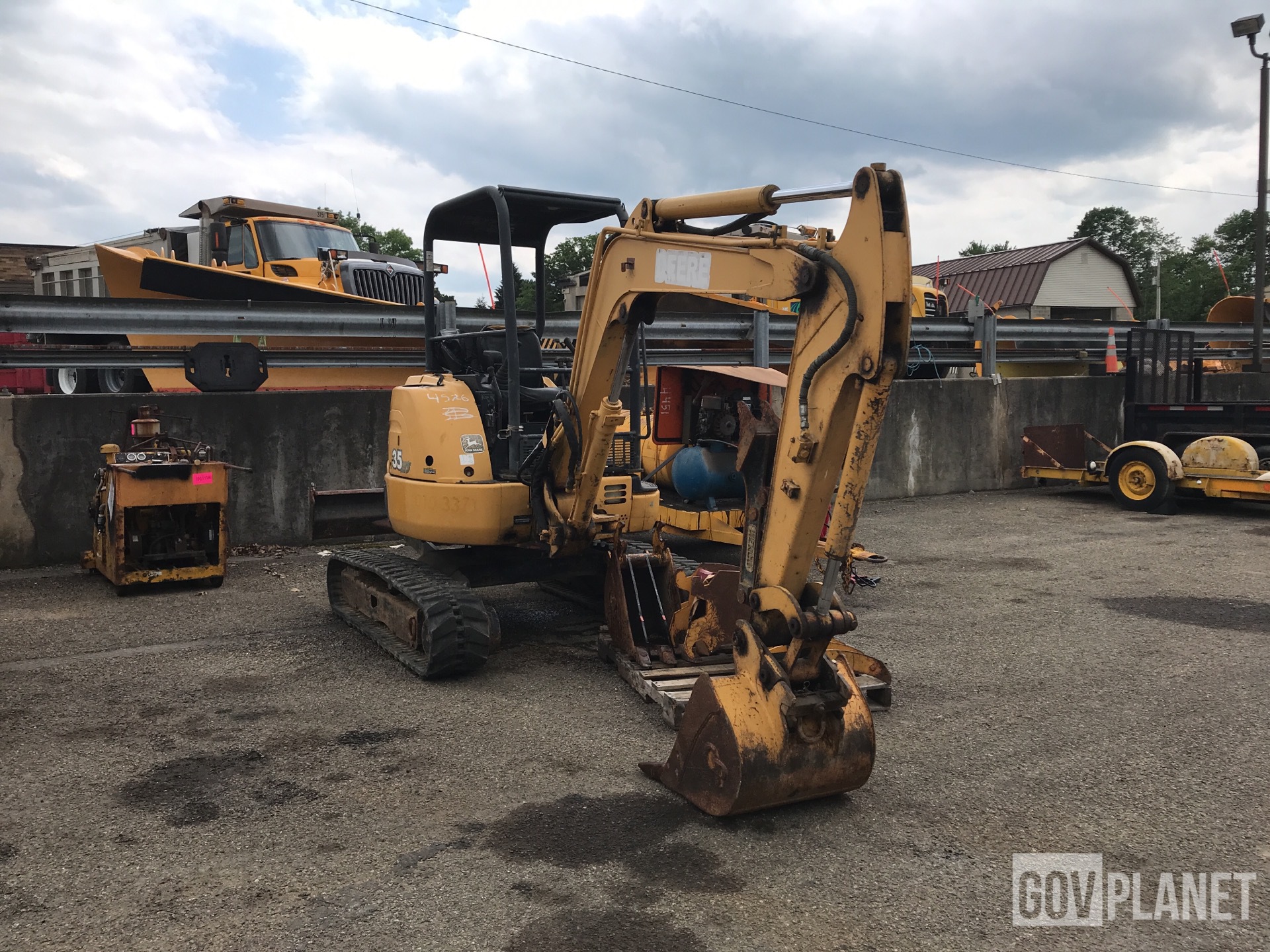

John Deere 35 ZTS Mini Excavator
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,782 lb
Fuel Capacity10.5 gal
Hydraulic Pump Flow Capacity22.0 gal/min
Hydraulic System Fluid Capacity7.9 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model3LD1
Displacement92 in³
Power Measured @2,450 rpm
Net Power29.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Length of Track on Ground84 in
Tail Swing Radius35 in
Width to Outside of Tracks70 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.8 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth125 in
Max Reach Along Ground205 in
Max Vertical Wall Digging Depth94 in
Max Loading Height122 in
Shipping Length of Unit186 in
Max Cutting Height176 in
Shipping Height of Unit104 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
