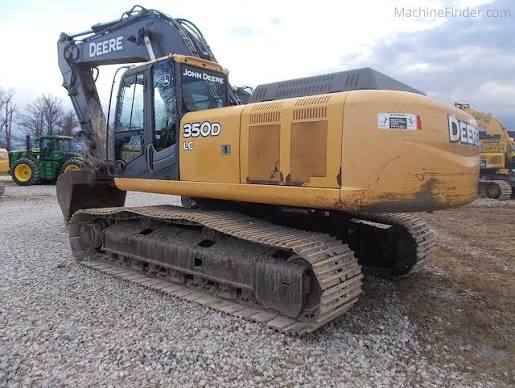

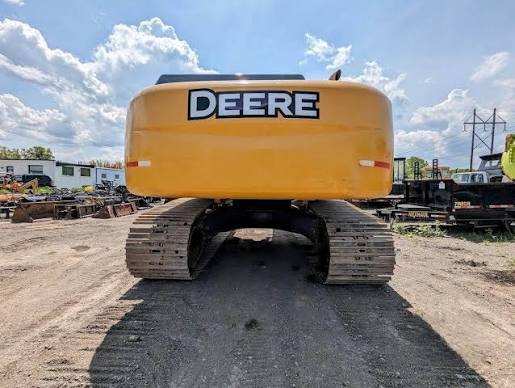

John Deere
350D LC
- Operating Weight
- 77,971 lb
- Max Digging Depth
- 270 in
- Max Digging Depth
- 292 in
- Net Power
- 271.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 77,971 lb |
|---|---|
| Fuel Capacity | 166.0 gal |
| Hydraulic Pump Flow Capacity | 152.2 gal/min |
| Hydraulic System Fluid Capacity | 89.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 7.2 gal |
| Cooling System Fluid Capacity | 10.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.2 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | 6090H |
|---|---|
| Displacement | 542 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 271.0 hp |
| Aspiration | Turbocharger w/ charge cooler |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 1,898 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 133 in |
| Width to Outside of Tracks | 133 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 64,375 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 270 in |
|---|---|
| Max Reach Along Ground | 408 in |
| Max Loading Height | 274 in |
| Max Vertical Wall Digging Depth | 217 in |
| Max Cutting Height | 394 in |
| Shipping Length of Unit | 438 in |
| Shipping Height of Unit | 138 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.80 yd³ |
| Minimum Bucket Capacity | 1.29 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 253 in |
| Max Cutting Height | 408 in |
| Max Loading Height | 285 in |
| Max Reach Along Ground | 430 in |
| Shipping Length of Unit | 433 in |
| Shipping Height of Unit | 130 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 323 in |
|---|---|
| Max Cutting Height | 424 in |
| Max Loading Height | 300 in |
| Max Vertical Wall Digging Depth | 287 in |
| Max Reach Along Ground | 459 in |
| Shipping Length of Unit | 438 in |
| Shipping Height of Unit | 143 in |
