Volvo

EC210B LC

Excavator

Operating Weight
46,958 lb
Net Power
143.5 hp
All excavators

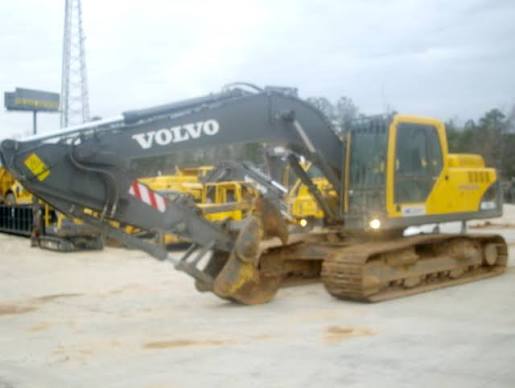

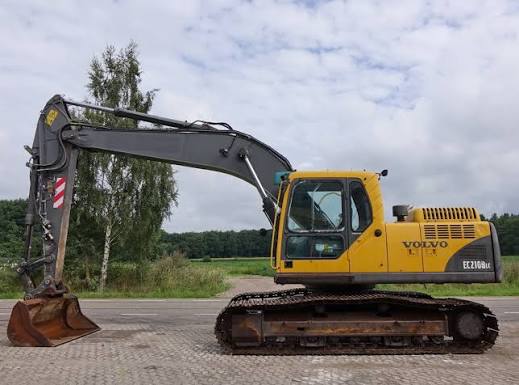

Volvo EC210B LC Excavator
1 / 5
Image 1 of 5
Image: zzcarstar.en.made-in-china.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,958 lb
Fuel Capacity92.5 gal
Hydraulic Pump Flow Capacity5.1 gal/min
Hydraulic System Fluid Capacity78.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity6.7 gal
Cooling System Fluid Capacity7.3 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD6D EFE2
Displacement348 in³
Power Measured @1,900 rpm
Gross Power159.0 hp
Net Power143.5 hp
Aspirationturbocharged
Torque Measured @1,425 rpm
Max Torque477 lb-ft

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size28 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity2.11 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
