John Deere

35C ZTS

Mini Excavator

Operating Weight
7,760 lb
Max Digging Depth
125 in
Net Power
32.0 hp
All mini excavators

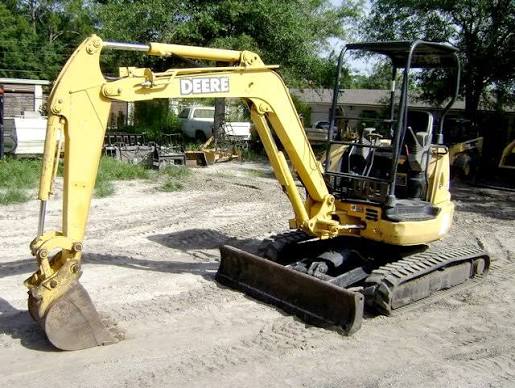

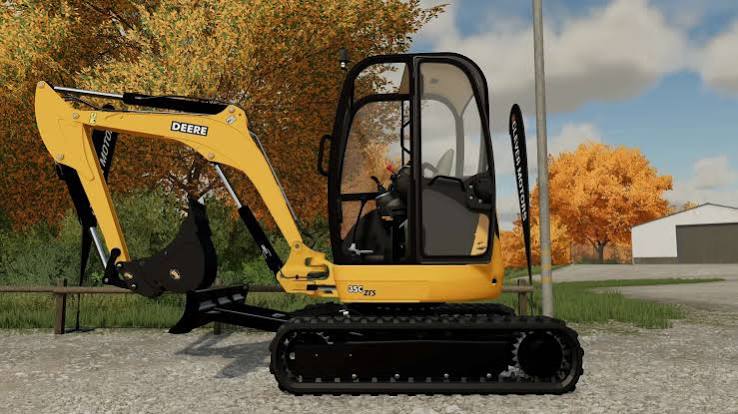

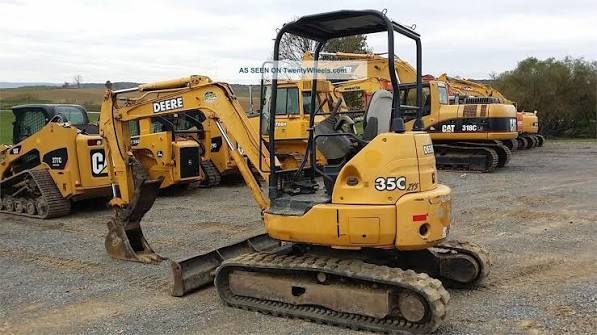

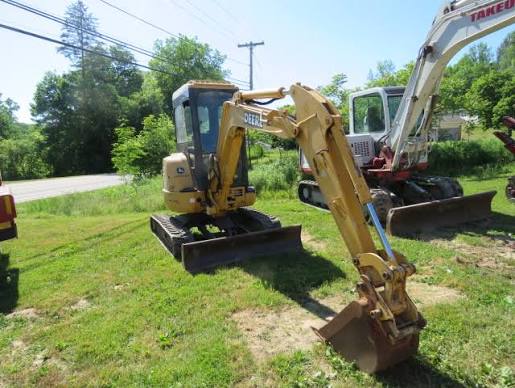

John Deere 35C ZTS Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,760 lb
Fuel Capacity10.5 gal
Hydraulic Pump Flow Capacity17.9 gal/min
Hydraulic System Fluid Capacity7.9 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model3LD2
Displacement92 in³
Power Measured @2,450 rpm
Net Power32.0 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab102 in
Length of Track on Ground67 in
Tail Swing Radius35 in
Width to Outside of Tracks70 in
Removal Counterweight Clearance23 in
Digging Depth120 in
Digging Reach120 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.8 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth125 in
Max Reach Along Ground205 in
Max Vertical Wall Digging Depth94 in
Max Loading Height122 in
Shipping Length of Unit186 in
Max Cutting Height176 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.30 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
