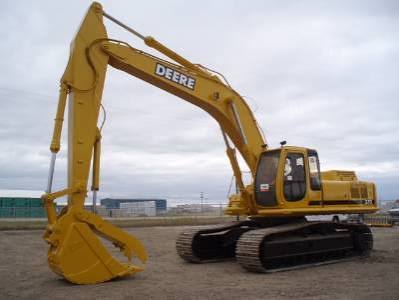

John Deere
370
- Operating Weight
- 81,200 lb
- Max Digging Depth
- 264 in
- Max Digging Depth
- 284 in
- Net Power
- 235.0 hp
1 / 5
Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 81,200 lb |
|---|---|
| Fuel Capacity | 148.0 gal |
| Hydraulic Pump Flow Capacity | 77.0 gal/min |
| Hydraulic System Fluid Capacity | 85.0 gal |
| Hydraulic System Relief Valve Pressure | 4,624 psi |
| Engine Oil Capacity | 7.4 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6081H |
|---|---|
| Displacement | 494 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 235.0 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,100 rpm |
| Max Torque | 940 lb-ft |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 127 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 131 in |
| Width to Outside of Tracks | 132 in |
| Removal Counterweight Clearance | 50 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 30 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 65,098 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 264 in |
|---|---|
| Max Reach Along Ground | 406 in |
| Max Loading Height | 276 in |
| Max Vertical Wall Digging Depth | 215 in |
| Max Cutting Height | 391 in |
| Shipping Length of Unit | 435 in |
| Shipping Height of Unit | 138 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 284 in |
|---|---|
| Max Vertical Wall Digging Depth | 248 in |
| Max Cutting Height | 406 in |
| Max Loading Height | 283 in |
| Max Reach Along Ground | 427 in |
| Shipping Length of Unit | 430 in |
| Shipping Height of Unit | 128 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 316 in |
|---|---|
| Max Cutting Height | 420 in |
| Max Loading Height | 302 in |
| Max Vertical Wall Digging Depth | 283 in |
| Max Reach Along Ground | 457 in |
| Shipping Length of Unit | 434 in |
| Shipping Height of Unit | 139 in |
