Komatsu

PC220-6

Excavator

Operating Weight
48,899 lb
Max Digging Depth
231 in
Max Digging Depth
251 in
Net Power
158.0 hp
All excavators

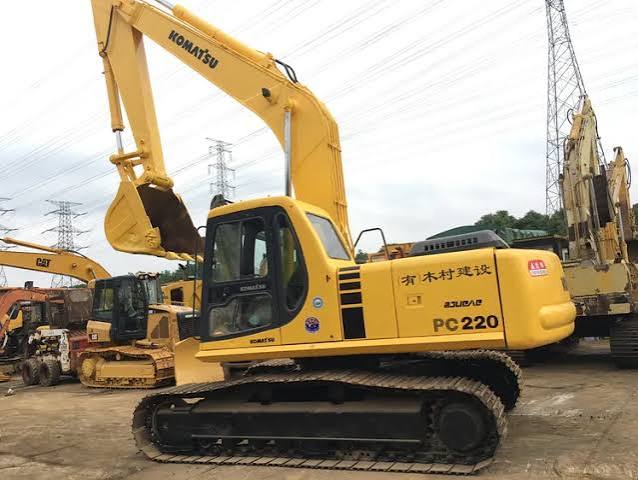

Komatsu PC220-6 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight48,899 lb
Fuel Capacity89.9 gal
Hydraulic Pump Flow Capacity114.2 gal/min
Hydraulic System Fluid Capacity43.9 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D102E
Displacement359 in³
Power Measured @2,100 rpm
Gross Power160.0 hp
Net Power158.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab115 in
Length of Track on Ground137 in
Tail Swing Radius113 in
Width to Outside of Tracks118 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth231 in
Max Reach Along Ground359 in
Max Loading Height241 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height357 in
Shipping Length of Unit385 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
Maximum Bucket Capacity1.70 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth251 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in
Max Loading Height245 in
Max Reach Along Ground373 in
Shipping Length of Unit388 in
Shipping Height of Unit130 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth274 in
Max Cutting Height370 in
Max Loading Height257 in
Max Vertical Wall Digging Depth238 in
Max Reach Along Ground395 in
Shipping Length of Unit385 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth291 in
Max Cutting Height379 in
Max Reach Along Ground413 in
Max Loading Height265 in
Max Vertical Wall Dig Depth254 in
Shipping Length of Unit386 in
