Volvo

EC140LC

Excavator

Operating Weight
29,476 lb
Max Digging Depth
203 in
Max Digging Depth
219 in
Net Power
98.6 hp
All excavators

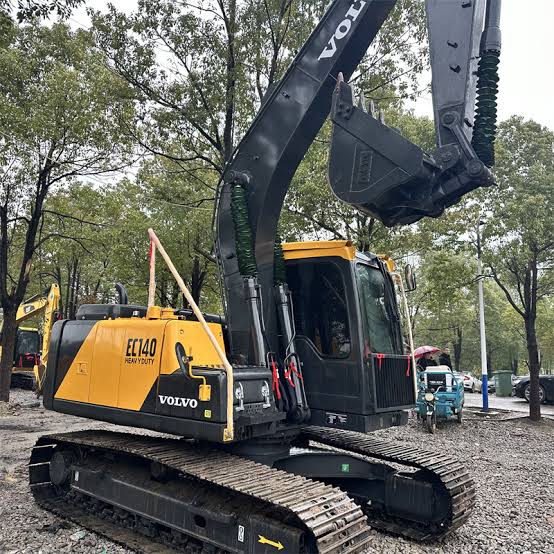

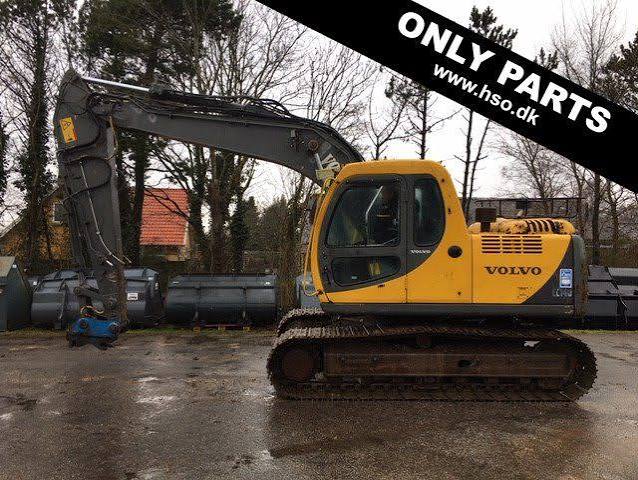

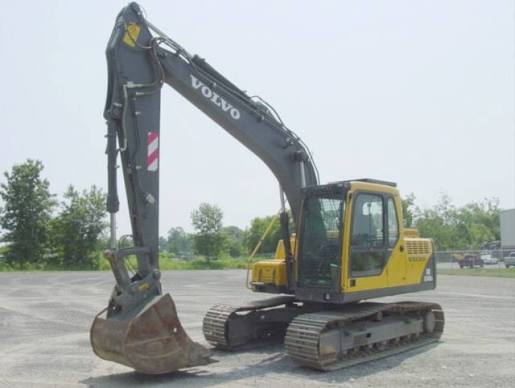

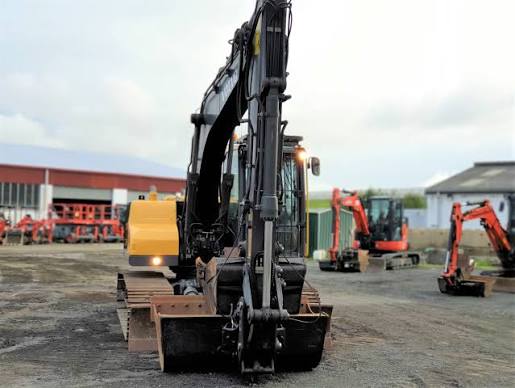

Volvo EC140LC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

73 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,476 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Fluid Capacity62.1 gal
Hydraulic System Relief Valve Pressure4,552 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity6.3 gal
Operating Voltage24 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelB3.9-C
Displacement238 in³
Power Measured @2,100 rpm
Gross Power106.5 hp
Net Power98.6 hp
Aspirationturbocharged
Torque Measured @1,600 rpm
Max Torque318 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab109 in
Length of Track on Ground119 in
Tail Swing Radius88 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth203 in
Max Reach Along Ground308 in
Max Loading Height227 in
Max Vertical Wall Digging Depth181 in
Max Cutting Height323 in
Shipping Length of Unit306 in
Shipping Height of Unit109 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth219 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height332 in
Max Loading Height236 in
Max Reach Along Ground323 in
Shipping Length of Unit306 in
Shipping Height of Unit110 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth238 in
Max Cutting Height346 in
Max Loading Height250 in
Max Vertical Wall Digging Depth217 in
Max Reach Along Ground343 in
Shipping Length of Unit301 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth200 in
Max Cutting Height365 in
Max Reach Along Ground312 in
Max Loading Height268 in
Max Vertical Wall Dig Depth169 in
Shipping Length of Unit305 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth215 in
Max Reach Along Ground328 in
Max Cutting Height379 in
Max Loading Height282 in
Max Vertical Wall Dig Depth183 in
Shipping Height of Unit113 in
Shipping Length of Unit302 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth235 in
Max Reach Along Ground347 in
Max Cutting Height398 in
Max Loading Height301 in
Max Vertical Wall Dig Depth205 in
Shipping Length of Unit294 in
Shipping Height of Unit132 in
