John Deere
380G LC
- Operating Weight
- 82,012 lb
- Max Digging Depth
- 292 in
- Max Digging Depth
- 313 in
- Net Power
- 270.9 hp
1 / 5

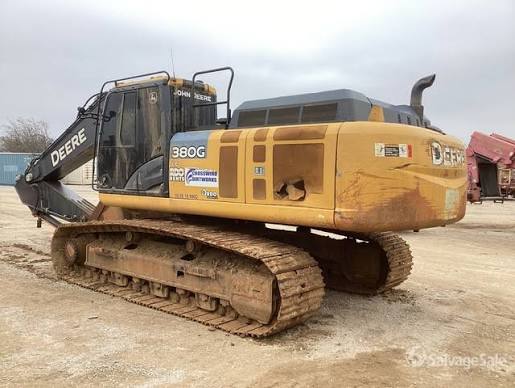

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 82,012 lb |
|---|---|
| Fuel Capacity | 165.9 gal |
| Hydraulic Pump Flow Capacity | 76.1 gal/min |
| Hydraulic System Fluid Capacity | 76.7 gal |
| Engine Oil Capacity | 7.2 gal |
| Cooling System Fluid Capacity | 10.5 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.2 gal |
| Alternator Supplied Amperage | 100 A |
Engine
| Engine Model | PowerTechâ„¢ PSX 9.0 L |
|---|---|
| Displacement | 549 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 270.9 hp |
| Aspiration | Turbocharged |
| Engine Make | John Deere |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 196 in |
| Tail Swing Radius | 143 in |
| Width to Outside of Tracks | 130 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 64,375 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 292 in |
|---|---|
| Max Reach Along Ground | 431 in |
| Max Loading Height | 287 in |
| Max Vertical Wall Digging Depth | 253 in |
| Max Cutting Height | 408 in |
| Shipping Length of Unit | 443 in |
| Shipping Height of Unit | 131 in |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 313 in |
|---|---|
| Max Vertical Wall Digging Depth | 277 in |
| Max Cutting Height | 424 in |
| Max Loading Height | 300 in |
| Max Reach Along Ground | 459 in |
| Shipping Length of Unit | 445 in |
| Shipping Height of Unit | 133 in |
