John Deere

437C

Log Loader

Operating Weight
29,500 lb
Displacement
414 in³
Net Power
170.4 hp
All log loaders

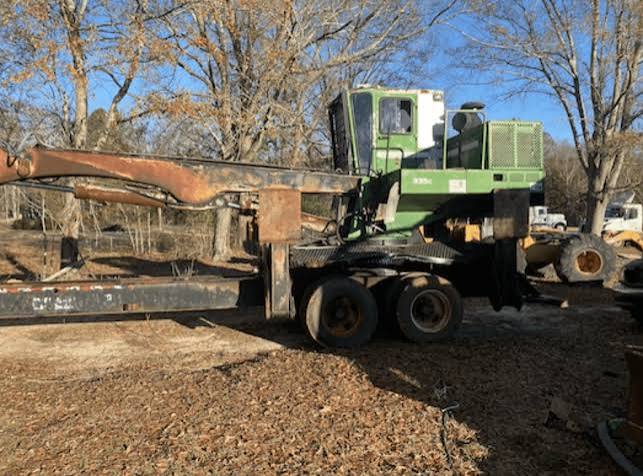

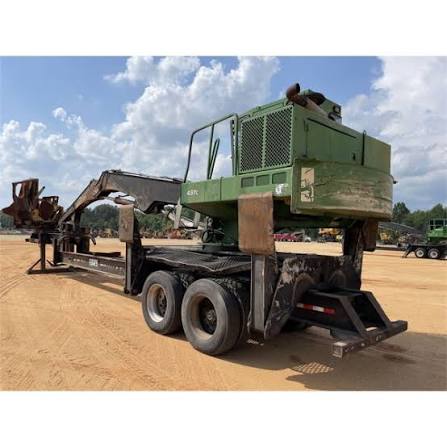

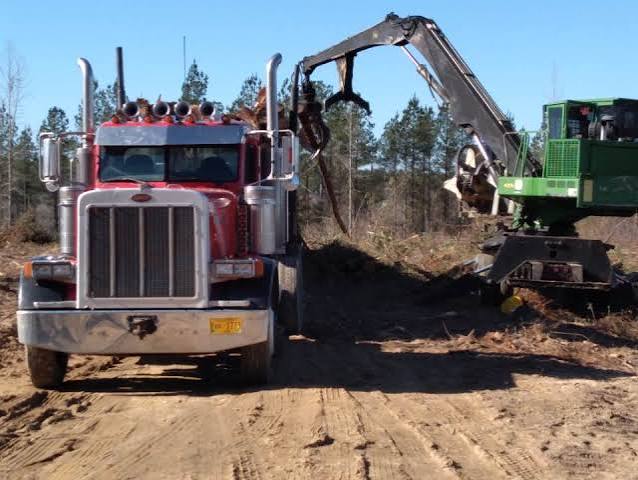

John Deere 437C Log Loader
1 / 5
Image 1 of 5
Image: lumbermenonline.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,500 lb
Fuel Capacity90.1 gal
Hydraulic System Fluid Capacity99.9 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine Model6068T
Displacement414 in³
Power Measured @2,200 rpm
Net Power170.4 hp
Number of Cylinders6
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump TypeVariable
Pump Flow Capacity117.1 gal/min
Relief Valve Pressure3,623 psi

Dimensions

Dimensions specifications
Height - Top of Cab162 in
Overall Width98 in
Tail Swing Radius102 in

Undercarriage

Undercarriage specifications
(KB Only) Width w/Stabilizers Down215 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque35,999 lb-ft
