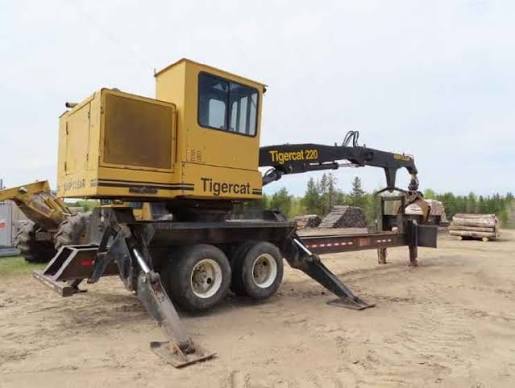

Tigercat
220C
- Operating Weight
- 25,700 lb
- Max Lift Capacity Over Front at Ground Level
- 24,008 lb
- Net Power
- 160.0 hp
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight | 25,700 lb |
|---|---|
| Fuel Capacity | 99.9 gal |
| Hydraulic System Fluid Capacity | 59.5 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | QSB6.7 Tier III |
|---|---|
| Net Power | 160.0 hp |
Hydraulic System
| Pump Type | Triple section gear |
|---|
Dimensions
| Overall Width | 102 in |
|---|---|
| Tail Swing Radius | 91 in |
Swing Mechanism
| Swing Speed | 7 rpm |
|---|
Boom/Stick Log Loader Option 1
| Max Lift Capacity Over Front at Ground Level | 24,008 lb |
|---|---|
| Max Height | 300 in |
| Max Reach at Ground Level | 332 in |
| Boom/Stick Option (LGL) 1 | boom |
| Shipping Length | 180 in |
