John Deere

544B

Log Loader

Operating Weight
21,297 lb
Displacement
414 in³
Net Power
105.0 hp
All log loaders

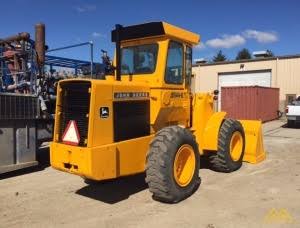

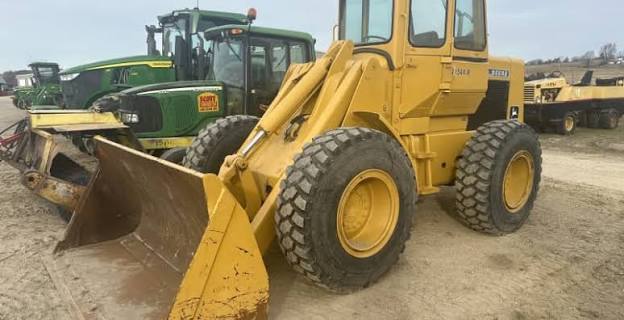

John Deere 544B Log Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,297 lb
Fuel Capacity40.0 gal
Hydraulic System Fluid Capacity48.0 gal
Operating Voltage12 V
Alternator Supplied Amperage42 A
Cooling System Fluid Capacity32.0 gal

Engine

Engine specifications
Engine Model544-B
Displacement414 in³
Net Power105.0 hp
Net Torque325 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Typepiston variable -displacement pump
Pump Flow Capacity44.5 gal/min
Relief Valve Pressure2,400 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground260 in

Undercarriage

Undercarriage specifications
Shoe Size70 in
Max Speed25.0 mph

Boom/Stick Log Loader Option 1

Boom/Stick Log Loader Option 1 specifications
Shipping Height122 in
