D3K LGP
Crawler Dozer
35 specifications
1 / 5

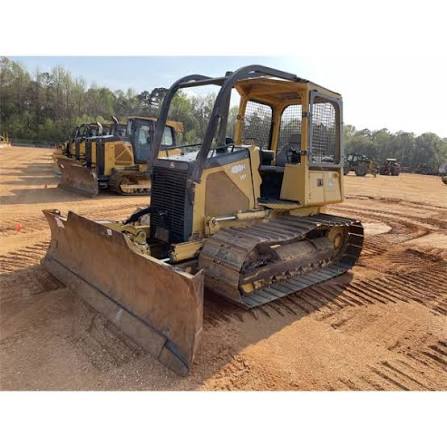

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 15,000 lb |
|---|---|
| Fuel Capacity | 36.0 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Final Drives Fluid Capacity | 1.8 gal |
| Engine Oil Capacity | 3.7 gal |
| Hydraulic Fluid Capacity | 8.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 4045D |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 73.0 hp |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 223 lb-ft |
Hydraulic System
| Pump Flow Capacity | 15.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 102 in |
| Length of Track on Ground | 78 in |
| Width Over Tracks | 17 in |
| Length w/o Blade | 156 in |
Transmission
| Max Speed - Forward | 5.0 mph |
|---|---|
| Max Speed - Reverse | 5.0 mph |
| Transmission Type | Dual-path electronic-controlled hydrostatic drive |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 5 |
| Number of Shoes per Side | 37 |
| Standard Shoe Size | 16 in |
| Ground Contact Area | 2,464 in³ |
| Track Pitch | 6 in |
Standard Blade
| Width | 90 in |
|---|---|
| Height | 33 in |
| Capacity | 1.90 yd³ |
| Blade Angle (both directions) | 25 ° |
