John Deere

50C ZTS

Mini Excavator

Operating Weight
10,252 lb
Max Digging Depth
143 in
Net Power
41.5 hp
All mini excavators

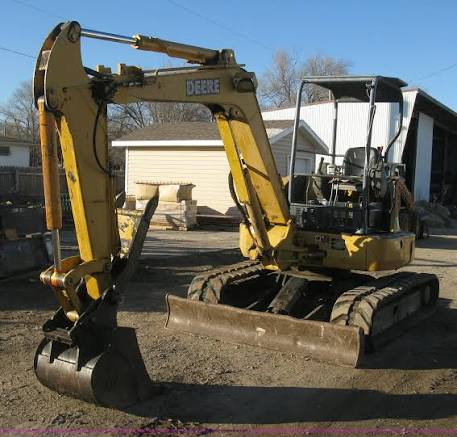

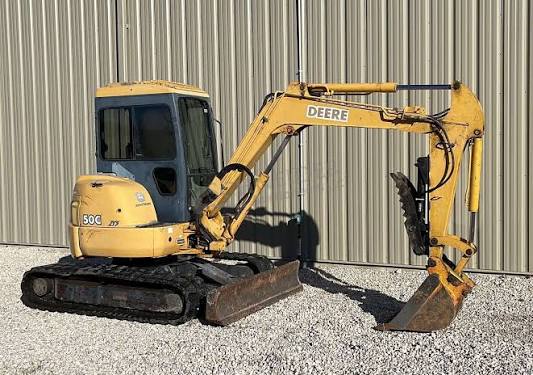

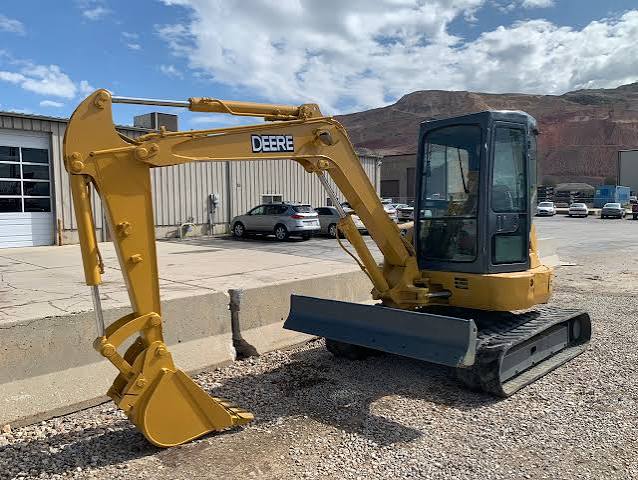

John Deere 50C ZTS Mini Excavator
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,252 lb
Fuel Capacity13.2 gal
Hydraulic Pump Flow Capacity22.5 gal/min
Hydraulic System Fluid Capacity11.8 gal
Operating Voltage12 V
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model4LE2
Displacement133 in³
Power Measured @2,200 rpm
Net Power41.5 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab103 in
Tail Swing Radius41 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance24 in
Digging Depth132 in
Digging Reach132 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.7 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth143 in
Max Reach Along Ground228 in
Max Vertical Wall Digging Depth84 in
Max Loading Height156 in
Shipping Length of Unit210 in
Max Cutting Height222 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
