John Deere
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

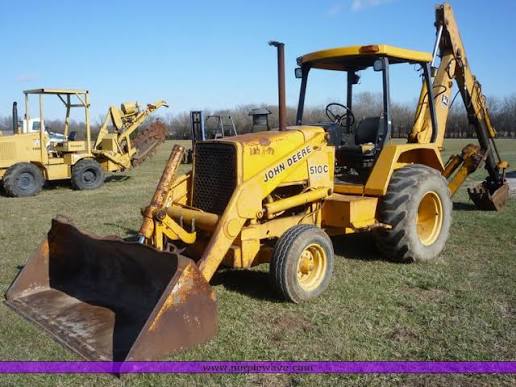

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Fuel Capacity | 38.0 gal |
|---|---|
| Hydraulic System Fluid Capacity | 21.0 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 11L-1612PR F3 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 65 A |
| Turning Radius | 139 in |
| Transmission Fluid Capacity | 21.0 gal |
| Max Weight | 15,400 lb |
Engine
| Engine Model | 4045T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 95.0 hp |
| Net Power | 90.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Net Max Torque | 268 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 35.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,755 psi |
| Pump Type | Radial pistons |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 93 in |
| Transport Length | 281 in |
| Height to Top of Suspended Cab | 106 in |
Transmission
| Max Speed | 22.1 mph |
|---|---|
| Max Speed - Reverse | 25.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed helical gear synchronized collar shift transmission with hydraulic reverser |
Tires & Wheels
| Rear Tires Size | 19.5L-2410PR R4 |
|---|
Backhoe
| Dig Depth | 198 in |
|---|---|
| Reach From Swivel | 240 in |
| Dig Depth - Extended | 183 in |
| Load Height - Extended | 183 in |
| Bucket Dig Force | 11,000 lb |
| Reach From Swivel - Extended | 288 in |
| Reach at Load Height - Extended | 335 in |
| Bucket Dig Force - Extended | 11,000 lb |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Clearance at Max Dump Height | 106 in |
| Bucket Breakout Force | 9,700 lb |
| Bucket Width | 92 in |
| Reach at Max Dump Height | 30 in |
| Dig Depth | 4 in |
