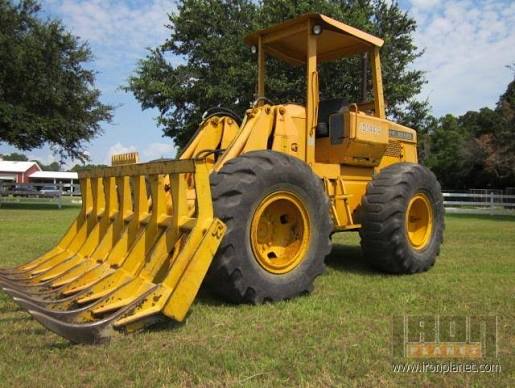

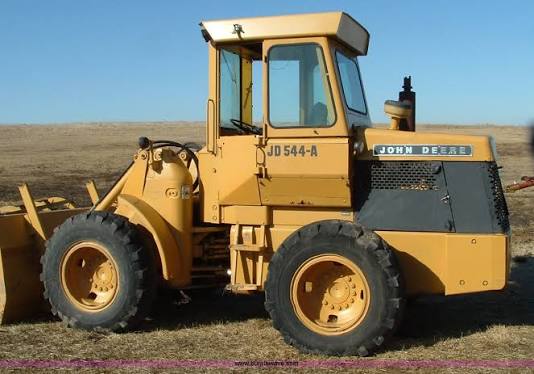

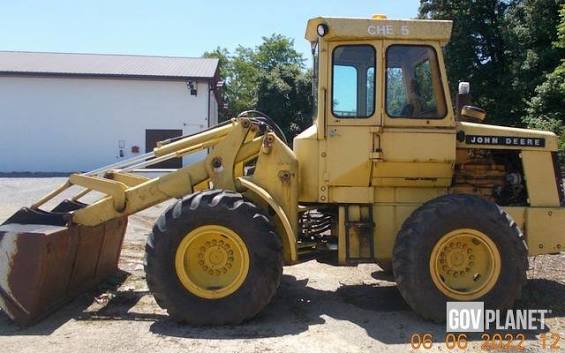

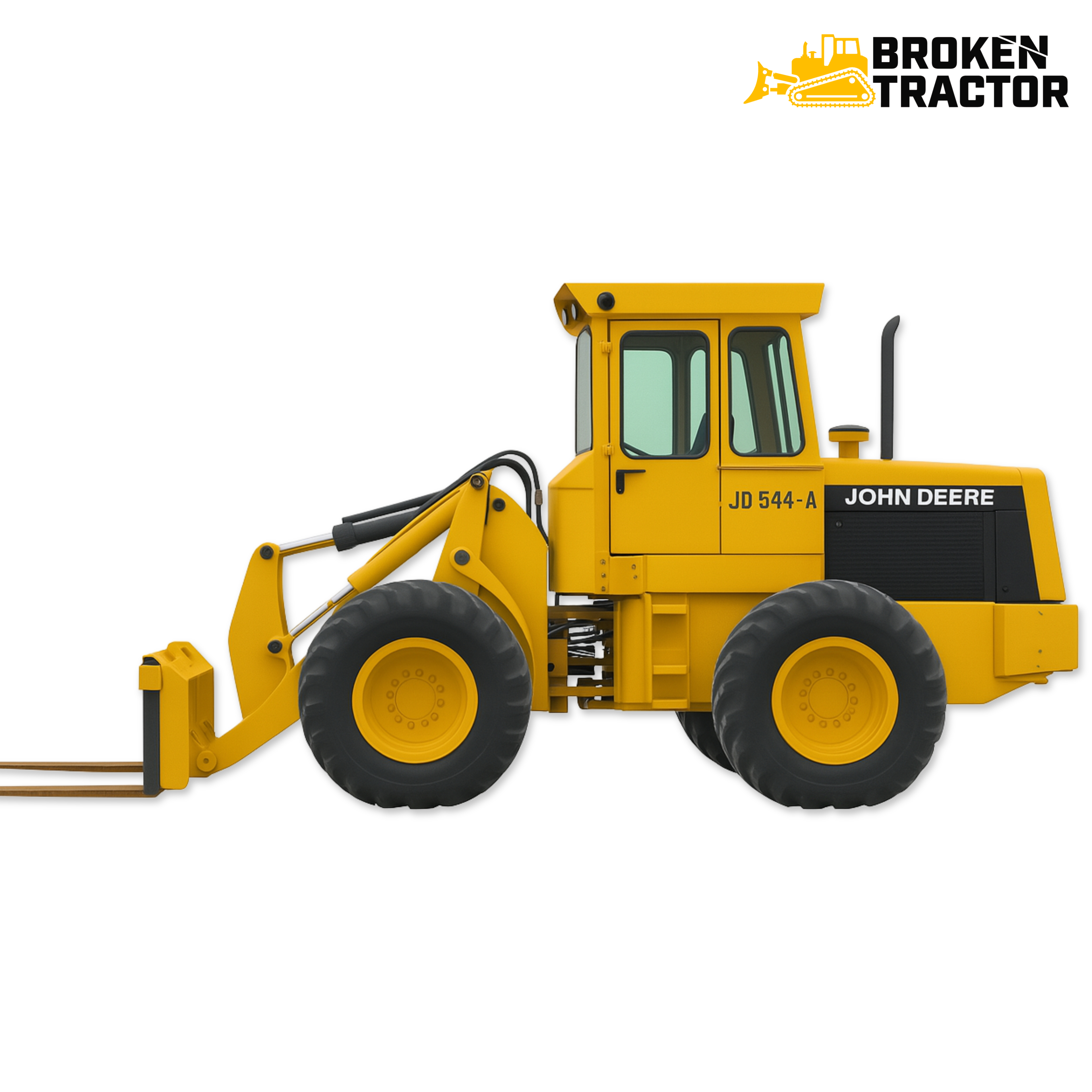

John Deere
544A
- Operating Weight
- 19,335 lb
- Bucket Capacity - heaped
- 1.50 yd³
- Gross Power
- 104.0 hp
- Net Power
- 94.0 hp
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 19,335 lb |
|---|---|
| Fuel Capacity | 40.0 gal |
| Tire Size | 13-24 / 17.5-25 |
| Hydraulic System Fluid Capacity | 12.0 gal |
| Static Tipping Weight | 13,245 lb |
| Operating Voltage | 12 V |
| Turning Radius | 167 in |
| Engine Oil Fluid Capacity | 2.5 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 4.3 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Cooling System Fluid Capacity | 7.5 gal |
| Transmission Fluid Capacity | 9.8 gal |
Engine
| Displacement | 329 in³ |
|---|---|
| Power Measured @ | 2,500 rpm |
| Gross Power | 104.0 hp |
| Net Power | 94.0 hp |
| Aspiration | Natural |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 42.0 gal/min |
|---|---|
| Relief Valve Setting | 2,250 psi |
| Pump Type | Variable displacement- type pump |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 95 in |
| Reach at Max Lift and Dump | 33 in |
| Length with Bucket on Ground | 228 in |
| Hinge Pin - Max Height | 134 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 9.2 mph |
| Transmission Type | Powershift transmission |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.50 yd³ |
|---|---|
| Bucket Capacity - struck | 1.29 yd³ |
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 16,105 lb |
| Bucket Width | 89 in |
