John Deere
JCB
436 Wastemaster
Wheel Loader
47 specifications
1 / 5

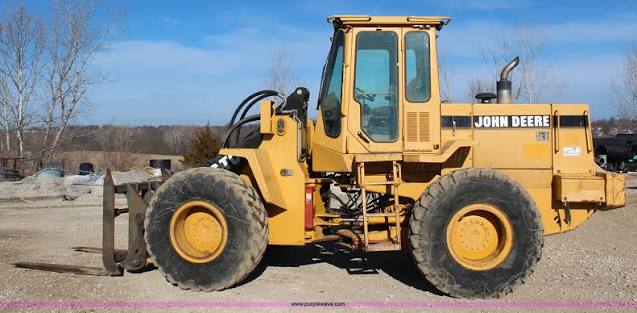

Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 24,621 lb |
|---|---|
| Fuel Capacity | 57.6 gal |
| Tire Size | 15.5-2512PRL2 |
| Hydraulic System Fluid Capacity | 20.1 gal |
| Engine Oil Fluid Capacity | 5.1 gal |
| Rear Axle Oscillation | 22 ° |
| Front Axle/Diff Fluid Capacity | 4.8 gal |
| Rear Axle/Diff Fluid Capacity | 4.8 gal |
| Cooling System Fluid Capacity | 6.3 gal |
| Transmission Fluid Capacity | 2.6 gal |
Engine
| Engine Model | 5afb2a.pdf |
|---|---|
| Displacement | 359 in³ |
| Gross Power | 120.0 hp |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 115 in |
| Width Over Tires | 97 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 280 in |
Transmission
| Max Speed - Forward | 23.8 mph |
|---|---|
| Max Speed - Reverse | 17.2 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
