John Deere

555G

Crawler Loader

Operating Weight
21,058 lb
Bucket Capacity - heaped
1.50 yd³
Bucket Capacity - struck
1.29 yd³
Net Power
90.0 hp
All crawler loaders

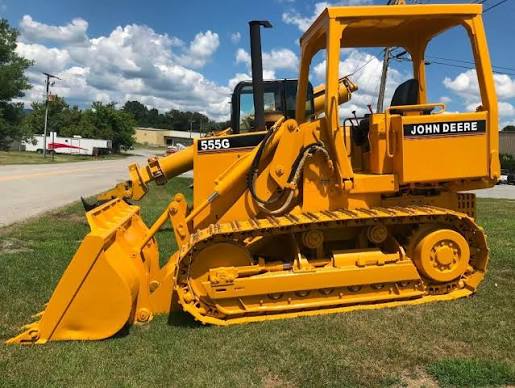

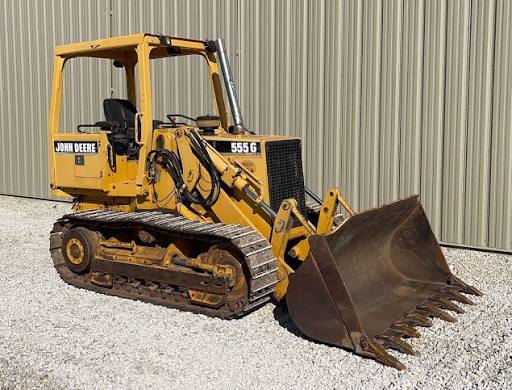

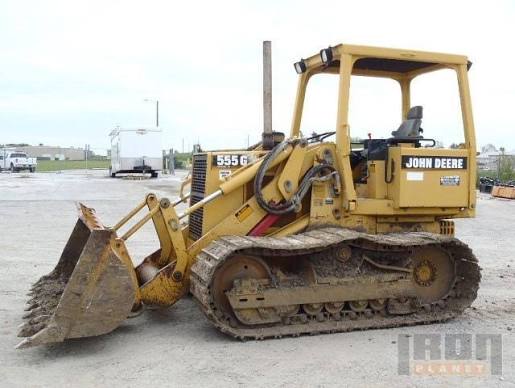

John Deere 555G Crawler Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,058 lb
Bucket Capacity - heaped1.50 yd³
Bucket Capacity - struck1.29 yd³
Max Speed5.8 mph
Fuel Capacity41.0 gal
Static Tipping Load13,600 lb
Breakout Force Bucket20,250 lb
Cooling System Fluid Capacity4.5 gal
Hydraulic System Fluid Capacity19.7 gal
Final Drive Fluid Capacity - each1.8 gal
Engine Oil Capacity3.3 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A

Engine

Engine specifications
Engine Model4045T
Displacement276 in³
Power Measured @2,100 rpm
Net Power90.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque293 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity39.0 gal/min
Relief Valve Pressure2,600 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance178 in
Height - Top of Cab111 in
Width to Outside of Tracks78 in
Length with Bucket on Ground182 in
Clearance at Full Height and Dump106 in
Reach at Dump Height35 in

Undercarriage

Undercarriage specifications
Length of Track on Ground79 in
Track Gauge61 in
Track Shoe Width16 in
Ground Pressure8 psi
Number of Track Rollers per Side6
Ground Contact Area2,522 in³
Number of Shoes per Side36
