John Deere

570A

Motor Grader

Max Power
92.0 hp
Net Power Gears 7-8
85.0 hp
All motor graders

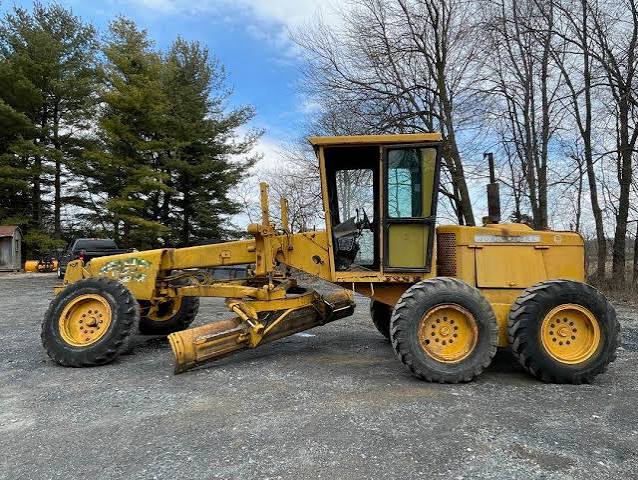

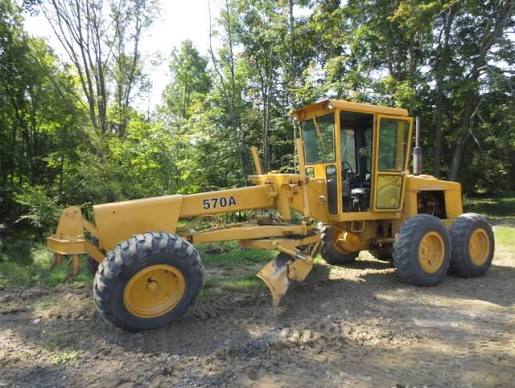

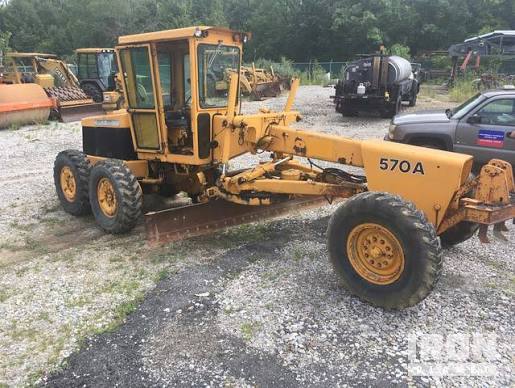

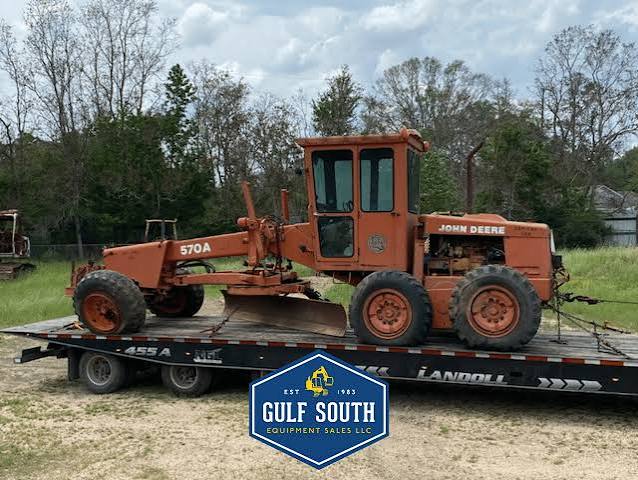

John Deere 570A Motor Grader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Tire Size13.00-24
Operating Voltage12 V

Engine

Engine specifications
Displacement329 in³
Power Measured @2,300 rpm
Net Power85.0 hp
Number of Cylinders6
Torque Measured @1,300 rpm
Bore4 in
Stroke4 in
Torque238 lb-ft
Max Power92.0 hp
Net Power Gears 7-885.0 hp
Net Torque Gears 7-8238 lb-ft
Gross horsepower92.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow27.0 gal/min
Pump TypeClosed-center
Relief Valve Pressure2,000 psi

Dimensions

Dimensions specifications
Wheelbase209 in
Width Over Tires96 in
Height to Top of Isomount Cab126 in
Blade Base93 in
Tandem Axle Wheelbase57 in
Front Ground Clearance24 in
Rear Ground Clearance24 in

Transmission

Transmission specifications
Max Speed - Reverse7.1 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypePower Shift

Moldboard

Moldboard specifications
Moldboard Width144 in
Side Shift Left31 in
Side Shift Right27 in
Moldboard Length145 in

Circle

Circle specifications
Max Lift Above Ground13 in
Max Reach Outside Tires - Left77 in
Max Reach Outside Tires - Right72 in
Diameter54 in
Blade Tip Angle - Front45 °
Rotation360 °
Blade Tip Angle - Rear5 °

Front Axle

Front Axle specifications
Wheel Lean20 °
Oscillation - Total30 °
Ground Clearance24 in

Steering System

Steering System specifications
Turning Radius216 in
Articulation Angle22 °
