John Deere

600C LC

Excavator

Operating Weight
131,700 lb
Max Digging Depth
312 in
Max Digging Depth
336 in
Net Power
396.0 hp
All excavators

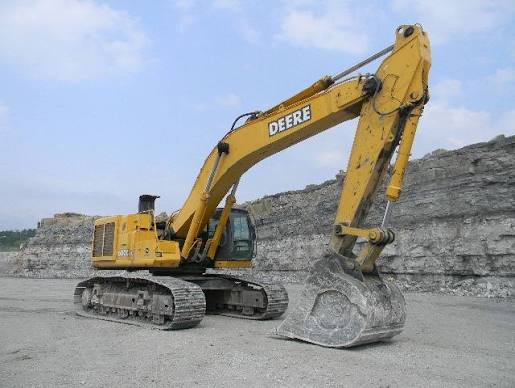

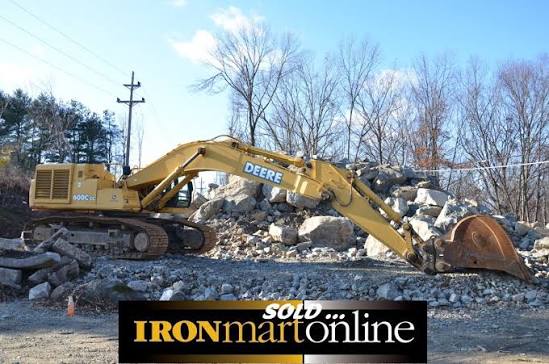

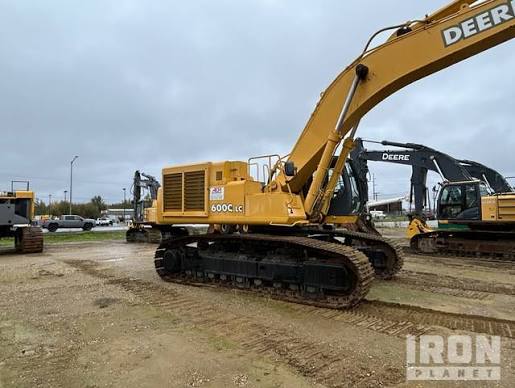

John Deere 600C LC Excavator
1 / 5
Image 1 of 5
Image: oldforgepower.com

Specifications

68 data points

Operating Specifications

Operating Specifications specifications
Operating Weight131,700 lb
Fuel Capacity196.0 gal
Hydraulic Pump Flow Capacity117.0 gal/min
Hydraulic System Fluid Capacity81.0 gal
Hydraulic System Relief Valve Pressure4,480 psi
Engine Oil Capacity13.0 gal
Cooling System Fluid Capacity17.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.1 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelBB-6WG1X
Displacement957 in³
Net Power396.0 hp
AspirationTurbocharged with cooler
Max Torque1,140 lb-ft

Dimensions

Dimensions specifications
Ground Clearance32 in
Height - Top of Cab137 in
Length of Track on Ground181 in
Tail Swing Radius150 in
Width to Outside of Tracks162 in
Removal Counterweight Clearance57 in
Digging Depth300 in
Digging Reach300 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge126 in
Number of Track Rollers per Side9
Max Travel Speed3.1 mph
Shoe Size36 in
Number of Shoes per Side51
Number of Carrier Rollers per Side3
Drawbar Pull92,170 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth312 in
Max Reach Along Ground483 in
Max Loading Height306 in
Max Vertical Wall Digging Depth267 in
Max Cutting Height457 in
Shipping Length of Unit512 in
Shipping Height of Unit174 in

Bucket

Bucket specifications
Reference Bucket Capacity3.90 yd³
Maximum Bucket Capacity6.40 yd³
Minimum Bucket Capacity2.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth336 in
Max Vertical Wall Digging Depth300 in
Max Cutting Height468 in
Max Loading Height316 in
Max Reach Along Ground506 in
Shipping Length of Unit510 in
Shipping Height of Unit168 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth359 in
Max Cutting Height474 in
Max Loading Height322 in
Max Vertical Wall Digging Depth320 in
Max Reach Along Ground527 in
Shipping Length of Unit509 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth395 in
Max Cutting Height485 in
Max Reach Along Ground561 in
Max Loading Height348 in
Max Vertical Wall Dig Depth349 in
Shipping Length of Unit498 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth280 in
Max Reach Along Ground444 in
Max Cutting Height425 in
Max Loading Height276 in
Max Vertical Wall Dig Depth204 in
Shipping Height of Unit186 in
Shipping Length of Unit474 in
