Komatsu

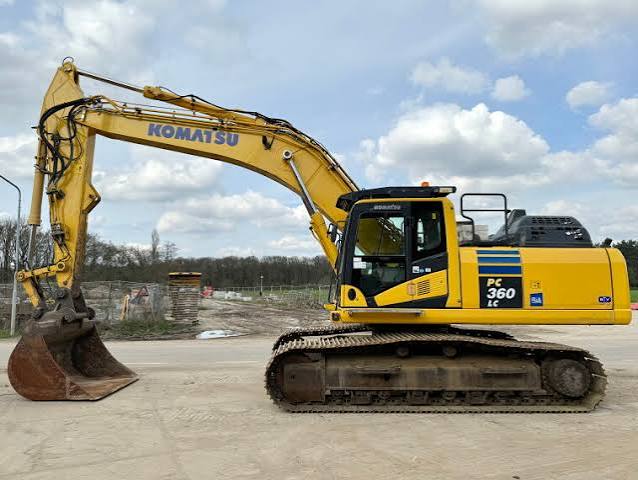

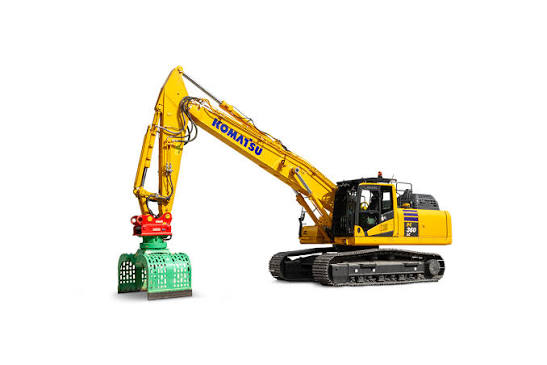

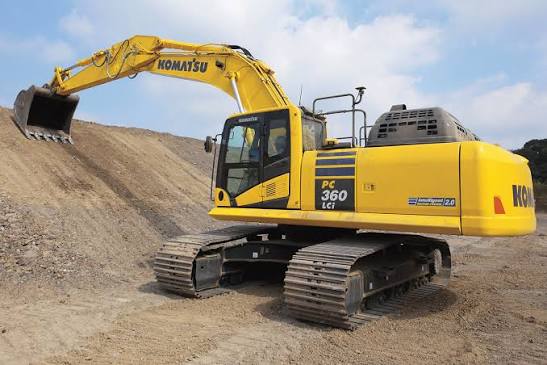

PC360LC-11
- Operating Weight
- 79,146 lb
- Max Digging Depth
- 251 in
- Max Digging Depth
- 264 in
- Net Power
- 257.0 hp
1 / 5
Image 1 of 5
Specifications
67 data points
Operating Specifications
| Operating Weight | 79,146 lb |
|---|---|
| Hydraulic Pump Flow Capacity | 141.4 gal/min |
Engine
| Engine Model | SAA6D114E-6 |
|---|---|
| Displacement | 540 in³ |
| Power Measured @ | 1,950 rpm |
| Gross Power | 271.0 hp |
| Net Power | 257.0 hp |
| Aspiration | Turbocharged |
| Engine Make | Komatsu |
| Stroke | 6 in |
| Bore | 5 in |
| Max Digging Reach | 438 in |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 172 in |
| Tail Swing Radius | 137 in |
| Removal Counterweight Clearance | 47 in |
| Track Gauge | 102 in |
| Track length | 195 in |
Undercarriage
| Number of Track Rollers per Side | 8 |
|---|---|
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 65,191 lb |
Fluid Capacities
| Fuel Tank | 159.9 gal |
|---|---|
| Engine Oil | 10.2 gal |
| Swing drive | 3.7 gal |
| Final Drive | 2.4 gal |
Boom/Stick Excavator Option 1
| Max Digging Depth | 251 in |
|---|---|
| Max Reach Along Ground | 462 in |
| Max Vertical Wall Digging Depth | 202 in |
| Minimum swing radius | 173 in |
| Max Digging Reach | 401 in |
| Max.Dumping Height | 260 in |
| Max Digging Reach on Ground | 393 in |
| Bucket Digging Force - SAE | 54,454 lb |
| Max Digging Height | 378 in |
| Arm Crowd Force - SAE | 49,384 lb |
General Specifications
| Operating Weight lbs (kg) | 80,320 (36,509) — Starting 2025 Model Year |
|---|---|
| Digging Depth ft (m) | 26.8 (8.18) — Starting 2025 Model Year |
| Digging Reach ft. (m) | 39 (11.90) — Starting 2025 Model Year |
| Engine hp (kW) | 257 (192) — Starting 2025 Model Year |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 231 in |
| Max Reach Along Ground | 408 in |
| Minimum swing radius | 173 in |
| Max Digging Reach | 417 in |
| Max.Dumping Height | 272 in |
| Bucket Digging Force - SAE | 54,454 lb |
| Max. digging height | 393 in |
| Arm Crowd Force-SAE | 42,108 lb |
Boom/Stick Excavator Option 3
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Reach Along Ground | 431 in |
| Minimum swing radius | 170 in |
| Max.Dumping Height | 281 in |
| Bucket Digging Force - SAE | 47,620 lb |
| Arm Crowd Force-SAE | 35,935 lb |
| Max. digging height | 402 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 323 in |
|---|---|
| Max Reach Along Ground | 462 in |
| Max Vertical Wall Dig Depth | 287 in |
| Minimum swing radius | 170 in |
| Max Digging Reach | 469 in |
| Max.Dumping Height | 295 in |
