Caterpillar

219D

Excavator

Operating Weight
47,620 lb
Max Digging Depth
179 in
Max Digging Depth
194 in
Net Power
140.0 hp
All excavators

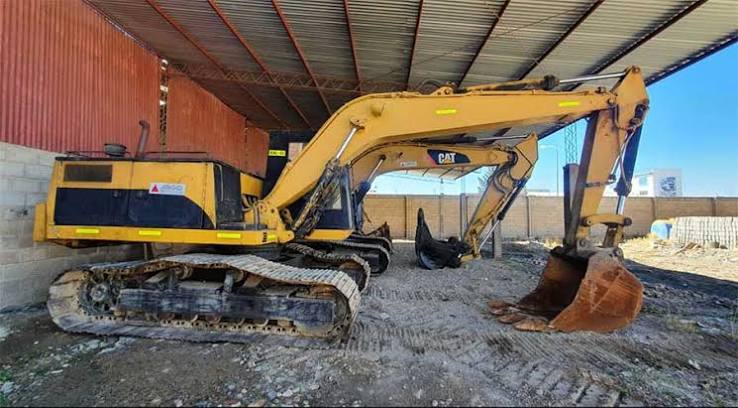

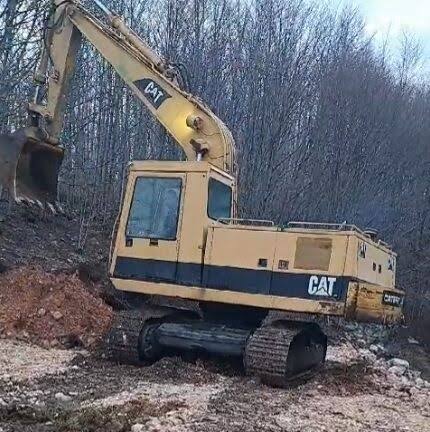

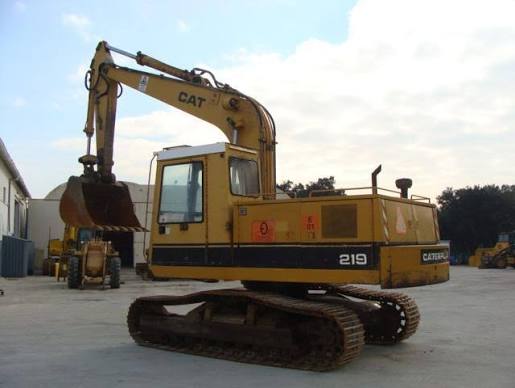

Caterpillar 219D Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight47,620 lb
Fuel Capacity71.4 gal
Hydraulic Pump Flow Capacity98.9 gal/min
Hydraulic System Relief Valve Pressure5,200 psi

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Net Power140.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab124 in
Tail Swing Radius106 in
Width to Outside of Tracks108 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge86 in
Max Travel Speed2.5 mph
Shoe Size22 in
Drawbar Pull36,869 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth179 in
Max Reach Along Ground349 in
Max Loading Height274 in
Max Vertical Wall Digging Depth141 in
Max Cutting Height377 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth194 in
Max Vertical Wall Digging Depth161 in
Max Cutting Height381 in
Max Loading Height280 in
Max Reach Along Ground361 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth219 in
Max Cutting Height398 in
Max Loading Height296 in
Max Vertical Wall Digging Depth181 in
Max Reach Along Ground384 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth243 in
Max Cutting Height414 in
Max Reach Along Ground407 in
Max Loading Height313 in
Max Vertical Wall Dig Depth202 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth265 in
Max Reach Along Ground430 in
Max Cutting Height421 in
Max Loading Height329 in
Max Vertical Wall Dig Depth128 in
