New Holland
JCB
JS240L
Excavator
13 specifications

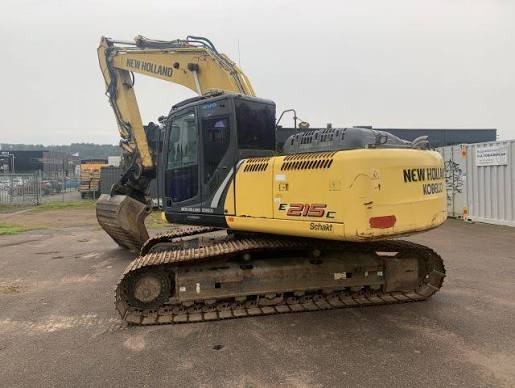

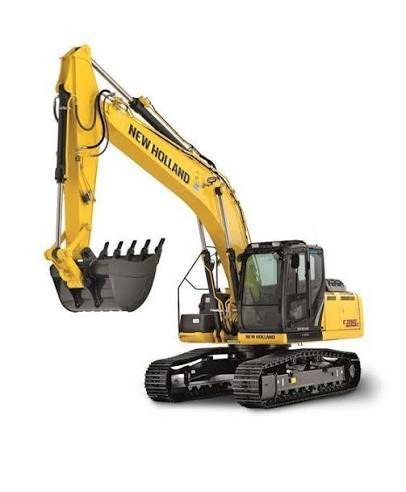

New Holland
E215C
- Operating Weight
- 47,774 lb
- Max Digging Depth
- 264 in
- Max Digging Depth
- 287 in
- Net Power
- 158.3 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 47,774 lb |
|---|---|
| Fuel Capacity | 118.4 gal |
| Hydraulic Pump Flow Capacity | 116.3 gal/min |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Engine Oil Capacity | 5.6 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | F4GE9684E |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 158.3 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 490 lb-ft |
| Engine Make | FPT |
| Stroke | 5 in |
| Bore | 4 in |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 122 in |
| Length of Track on Ground | 374 in |
| Tail Swing Radius | 110 in |
| Width to Outside of Tracks | 122 in |
Undercarriage
| Max Travel Speed | 3.6 mph |
|---|---|
| Shoe Size | 28 in |
| Number of Shoes per Side | 49 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 264 in |
|---|---|
| Max Reach Along Ground | 384 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 383 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 122 in |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 287 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 384 in |
| Max Loading Height | 275 in |
| Max Reach Along Ground | 401 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 122 in |
