John Deere
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5

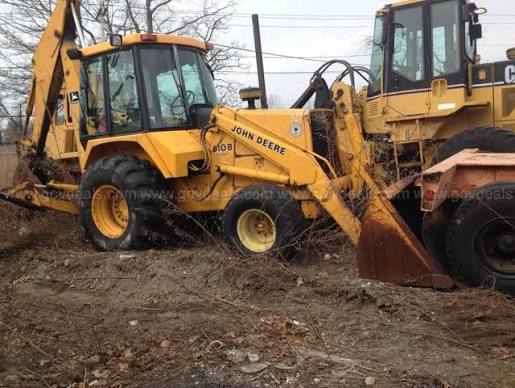

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Fuel Capacity | 23.0 gal |
|---|---|
| Hydraulic System Fluid Capacity | 20.0 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 12-16.58PR F3 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 35 A |
| Transmission Fluid Capacity | 20.0 gal |
| Max Weight | 14,651 lb |
| Rear Axle Fluid Capacity | 4.5 gal |
| Front Axle Fluid Capacity | 1.8 gal |
Engine
| Engine Model | 300 Series |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Net Max Torque | 248 lb-ft |
Hydraulic System
| Pump Flow Capacity | 30.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,000 psi |
| Pump Type | Close-Center |
Dimensions
| Transport Width | 93 in |
|---|---|
| Transport Length | 146 in |
Transmission
| Number of Forward Gears | 8 |
|---|---|
| Number of Reverse Gears | 4 |
| Transmission Type | Powershift |
Tires & Wheels
| Rear Tires Size | 19.5L-2412PR R4 |
|---|
Backhoe
| Load Height | 146 in |
|---|
