John Deere
Fendt
817
Tractor
23 specifications

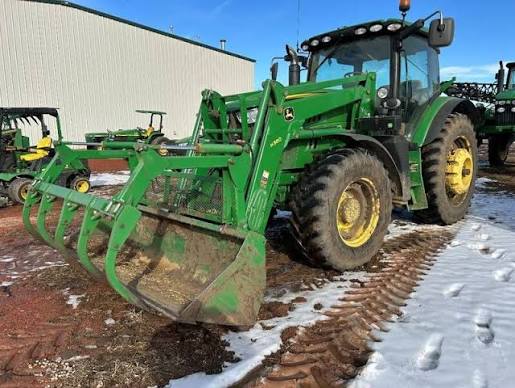

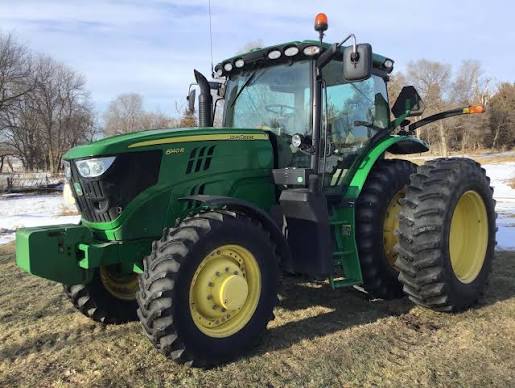

John Deere
6140R
- Operating Weight
- 13,658 lb
- Displacement
- 415 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 138.2 hp
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight | 13,658 lb |
|---|---|
| Fuel Capacity | 80.6 gal |
| Turning Radius | 275 in |
Engine
| Displacement | 415 in³ |
|---|---|
| Power Measured @ | 2,100 rpm |
| Gross Power | 138.2 hp |
| Number of Cylinders | 6 |
| Aspiration | Single variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation |
| Torque Measured @ | 1,499 rpm |
| Max Torque | 436 lb-ft |
| Engine Make | John Deere PowerTech PVX |
| PTO Power | 111.4 hp |
Hydraulic System
| Pump Flow Capacity | 30.2 gal/min |
|---|---|
| Hydraulic System Type | Closed-center pressure/flow compensated |
| Maximum system pressure | 2,900 psi |
Dimensions
| Wheelbase | 109 in |
|---|---|
| Front Tread Range | 84 in |
| Front Axle Clearance | 24 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Number of Forward Gears | 20 |
