John Deere

624E w/ Coupler

Wheel Loader

Operating Weight
27,661 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
141.0 hp
Net Power
135.0 hp
All wheel loaders

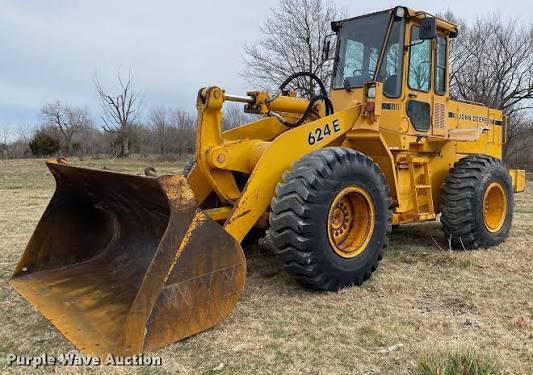

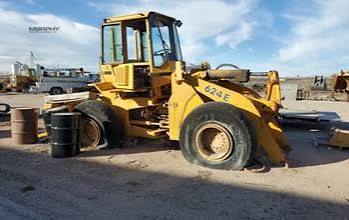

John Deere 624E w/ Coupler Wheel Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,661 lb
Fuel Capacity55.0 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity27.0 gal
Static Tipping Weight20,915 lb
Operating Voltage12 V
Turning Radius202 in
Engine Oil Fluid Capacity5.1 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage65 A
Front Axle/Diff Fluid Capacity6.1 gal
Rear Axle/Diff Fluid Capacity4.3 gal
Cooling System Fluid Capacity6.7 gal
Transmission Fluid Capacity2.7 gal

Engine

Engine specifications
Engine Model6414T
Displacement414 in³
Power Measured @2,200 rpm
Gross Power141.0 hp
Net Power135.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,300 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity57.0 gal/min
Raise Time5.8 s
Lower Time3.5 s
Dump Time1.7 s
Relief Valve Setting2,800 psi
Pump TypeGear

Dimensions

Dimensions specifications
Height - Top of Cab130 in
Wheelbase120 in
Width Over Tires98 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground289 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward25.4 mph
Max Speed - Reverse16.0 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck1.90 yd³
Dump Clearance at Max Raise117 in
Breakout Force30,768 lb
Bucket Width101 in
