John Deere

644J Waste Handler

Wheel Loader

Operating Weight
42,719 lb
Bucket Capacity - heaped
4.00 yd³
Net Power
185.0 hp
All wheel loaders

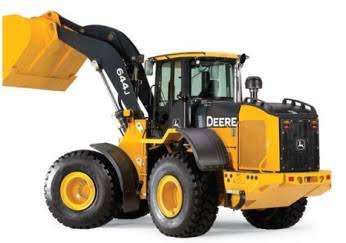

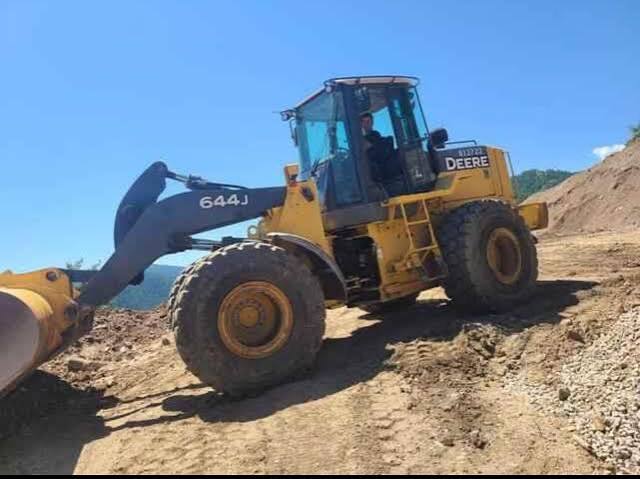

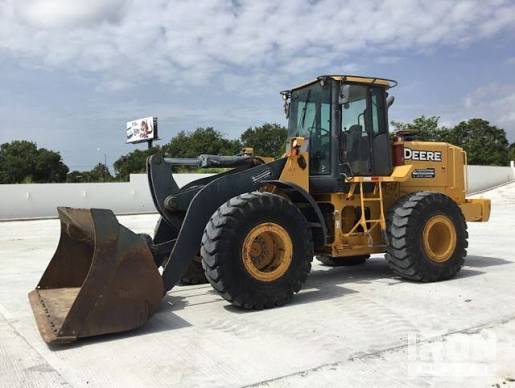

John Deere 644J Waste Handler Wheel Loader
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,719 lb
Fuel Capacity39.0 gal
Tire Size23.5 -25
Hydraulic System Fluid Capacity31.0 gal
Static Tipping Weight35,615 lb
Operating Voltage24 V
Turning Radius216 in
Engine Oil Fluid Capacity6.5 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity5.9 gal
Rear Axle/Diff Fluid Capacity5.9 gal
Cooling System Fluid Capacity7.8 gal
Transmission Fluid Capacity7.1 gal

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,200 rpm
Net Power185.0 hp
Number of Cylinders6
Aspirationturbocharged charge air cooled
Torque Measured @1,400 rpm
Torque Rise55.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity68.0 gal/min
Raise Time5.9 s
Lower Time2.8 s
Dump Time1.9 s
Relief Valve Setting3,600 psi
Pump TypeVariable axial piston

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab134 in
Wheelbase126 in
Width Over Tires109 in
Reach at Max Lift and Dump42 in
Length with Bucket on Ground336 in
Hinge Pin - Max Height161 in

Transmission

Transmission specifications
Max Speed - Forward14.7 mph
Max Speed - Reverse15.5 mph
Transmission Typeautomatic powershift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped4.00 yd³
Dump Clearance at Max Raise106 in
Breakout Force28,848 lb
Bucket Width118 in
