Terex
Tata Hitachi
TWL3036

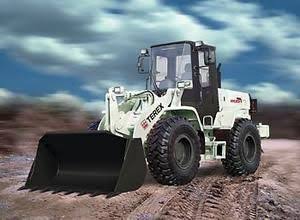

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 25,673 lb |
|---|---|
| Fuel Capacity | 64.2 gal |
| Tire Size | 20.5-25-12PR |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Static Tipping Weight | 19,555 lb |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Engine Oil Fluid Capacity | 7.2 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.2 gal |
| Rear Axle/Diff Fluid Capacity | 4.9 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Transmission Fluid Capacity | 8.0 gal |
Engine
| Engine Model | DL06 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 143.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 54.9 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 4.1 s |
| Dump Time | 1.1 s |
| Relief Valve Setting | 2,900 psi |
| Pump Type | triple gear |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 128 in |
| Wheelbase | 115 in |
| Width Over Tires | 97 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 288 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 23,149 lb |
| Bucket Width | 101 in |
