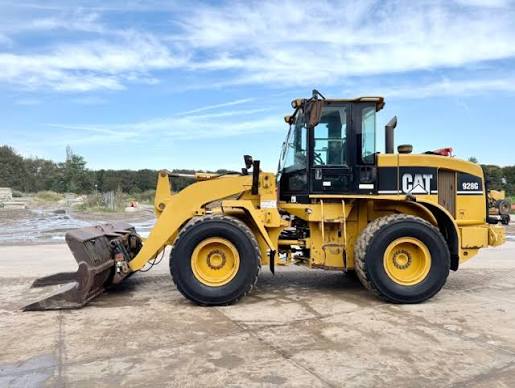

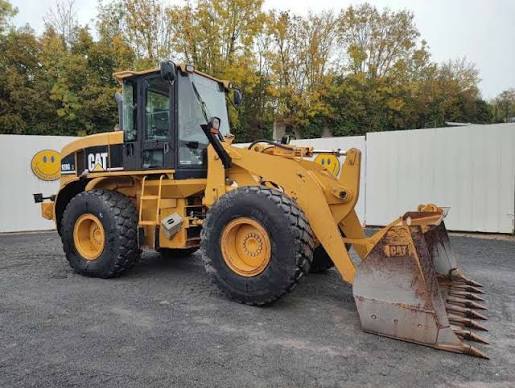

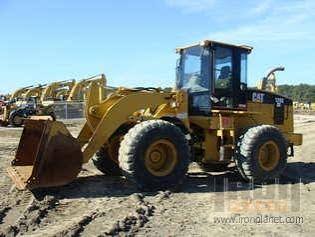

928G

Specifications

105 data points

Operating Specifications specifications
Operating Weight	25,699 lb
Fuel Capacity	59.5 gal
Tire Size	20.5-25 R25
Hydraulic System Fluid Capacity	33.1 gal
Static Tipping Weight	20,351 lb
Operating Voltage	24 V
Turning Radius	206 in
Engine Oil Fluid Capacity	4.3 gal
Rear Axle Oscillation	11 °
Alternator Supplied Amperage	80 A
Front Axle/Diff Fluid Capacity	6.9 gal
Rear Axle/Diff Fluid Capacity	6.7 gal
Cooling System Fluid Capacity	11.1 gal
Transmission Fluid Capacity	9.2 gal
Breakout Force	25,844 lb
Articulation Angle	40 °
Static Tipping Load - Full Turn	18,018 lb
Reach - Full Lift and 45 degrees Dump	36 in
Dump Clearance at Full Lift and 45 degrees Dump Angle	114 in

Weights specifications
Operating Weight	27,140 lb

Hydraulic System specifications
Pump Flow Capacity	40.2 gal/min
Raise Time	6.1 s
Lower Time	2.8 s
Dump Time	1.2 s
Relief Valve Setting	3,597 psi
Pump Type	fixed displacement vane-type implement pump

Dimensions specifications
Ground Clearance	17 in
Height - Top of Cab	130 in
Wheelbase	115 in
Overall Length	277 in
Width Over Tires	77 in
Reach at Max Lift and Dump	37 in
Length with Bucket on Ground	285 in
Hinge Pin - Max Height	154 in
Overall Height	197 in
Height - Top of ROPS/FOPS	130 in
Digging Depth	3 in
Wheel Base	115 in
Bucket Pin Height - Maximum Lift	149 in
Height - Top of Hood	88 in
Wheel Base Length	115 in
Centerline of Front Axle to Hitch	59 in
Rack Back Angle - Carry	48 °
Dump Angle at Maximum Lift	45 °
Dump Clearance at Maximum Lift - 45 degrees	114 in
Rack Back Angle - Maximum Lift	58 °
Reach at Maximum Lift and 45 degrees Dump	36 in
Overall Height - Bucket Raised	197 in
Height - Center of Axle	28 in
Length - Rear Axle to Bumper	77 in
Carry Height	36 in

Cab & Operator specifications
ROPS	SAE J1040 MAY94 ISO 3471-1994
FOPS	SAE J/ISO 3449 APR98 Level II ISO 3449-1992 Level II

Tires & Wheels specifications
Size	17.5-25PR (L-2)
Tread Width	1,152 in

Bucket specifications
Bucket Capacity - heaped	2.30 yd³
Bucket Capacity - struck	2.30 yd³
Dump Clearance at Max Raise	114 in
Breakout Force	25,849 lb
Bucket Width	101 in
Bucket Capacities	2.50 – 3.00 yd³
Reference Bucket Capacity	2.69 yd³
Breakout Force - Reference Bucket	25,844 lb
Type - Reference bucket	General purpose

Steering System specifications
Steering Angle - Each Direction	40 °
Maximum Working Pressure	3,000 psi
Steering Articulation	40 °
Steering Cylinder, Two, Bore	3 in
Minimum Turning Radius - Over Tires	206 in

Axles specifications
Axle Oscillation	11 °
