John Deere

650D LC

Excavator

Operating Weight
152,190 lb
Max Digging Depth
336 in
Max Digging Depth
360 in
Net Power
463.0 hp
All excavators

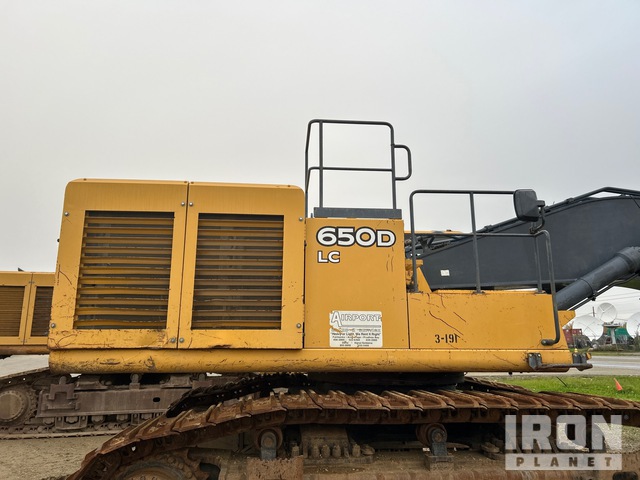

John Deere 650D LC Excavator
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Operating Weight152,190 lb
Fuel Capacity238.0 gal
Hydraulic Pump Flow Capacity120.0 gal/min
Hydraulic System Fluid Capacity190.2 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity13.6 gal
Cooling System Fluid Capacity14.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity4.8 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6WG1XYSA-02
Displacement957 in³
Power Measured @1,800 rpm
Net Power463.0 hp
AspirationTurbocharged w/ charge cooler

Dimensions

Dimensions specifications
Ground Clearance35 in
Height - Top of Cab137 in
Length of Track on Ground181 in
Tail Swing Radius146 in
Width to Outside of Tracks166 in
Removal Counterweight Clearance60 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge131 in
Number of Track Rollers per Side8
Max Travel Speed3.0 mph
Shoe Size36 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3
Drawbar Pull101,666 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth336 in
Max Reach Along Ground512 in
Max Loading Height318 in
Max Vertical Wall Digging Depth292 in
Max Cutting Height469 in
Shipping Length of Unit521 in
Shipping Height of Unit176 in

Bucket

Bucket specifications
Reference Bucket Capacity4.09 yd³
Maximum Bucket Capacity5.90 yd³
Minimum Bucket Capacity2.39 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth360 in
Max Vertical Wall Digging Depth323 in
Max Cutting Height482 in
Max Loading Height329 in
Max Reach Along Ground536 in
Shipping Length of Unit521 in
Shipping Height of Unit197 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth396 in
Max Cutting Height498 in
Max Loading Height361 in
Max Vertical Wall Digging Depth376 in
Max Reach Along Ground571 in
Shipping Length of Unit515 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth281 in
Max Cutting Height442 in
Max Reach Along Ground454 in
Max Loading Height289 in
Max Vertical Wall Dig Depth209 in
Shipping Length of Unit483 in
