John DeereJohn Deere
400G
Crawler Dozer
36 specifications

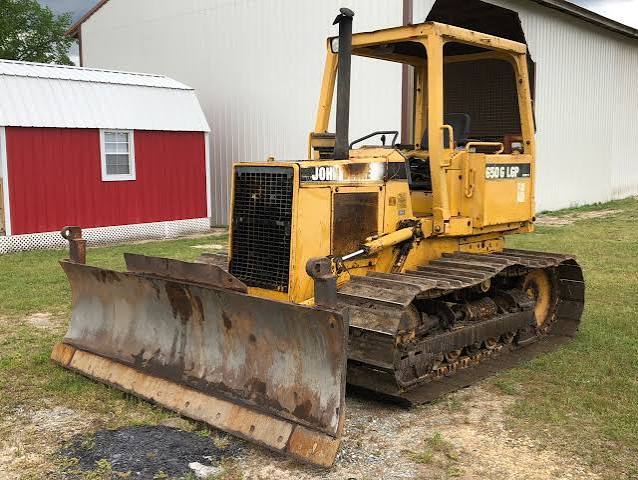

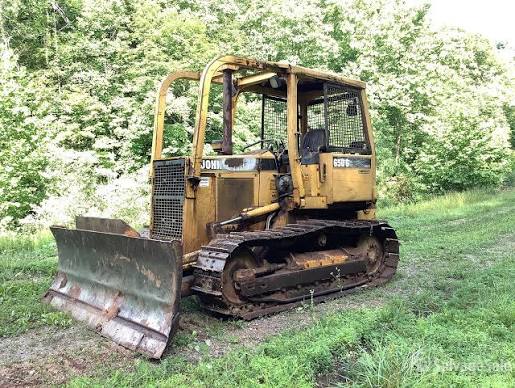

John Deere
650G LPG
- Operating Weight
- 19,322 lb
- Max Speed - Forward
- 5.9 mph
- Gross Power
- 99.0 hp
- Net Power
- 90.0 hp
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 19,322 lb |
|---|---|
| Fuel Capacity | 41.0 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Final Drives Fluid Capacity | 2.6 gal |
| Engine Oil Capacity | 3.3 gal |
| Hydraulic Fluid Capacity | 10.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | e 4045T |
|---|---|
| Displacement | 276 in³ |
| Gross Power | 99.0 hp |
| Net Power | 90.0 hp |
| Aspiration | Altitude-compensating turbocharger |
Hydraulic System
| Pump Flow Capacity | 17.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,750 psi |
| Pump Type | Gear |
Dimensions
| Height - Top of Cab | 110 in |
|---|---|
| Length of Track on Ground | 86 in |
| Width Over Tracks | 94 in |
| Length w/o Blade | 161 in |
Transmission
| Max Speed - Forward | 5.9 mph |
|---|---|
| Max Speed - Reverse | 5.8 mph |
| Transmission Type | Full power shift Dura-Shift with torque converter |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 6 |
| Number of Shoes per Side | 38 |
| Standard Shoe Size | 24 in |
| Ground Contact Area | 4,109 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 106 in |
|---|---|
| Height | 35 in |
| Capacity | 2.50 yd³ |
| Blade Angle (both directions) | 25 ° |
