John Deere

650H LGP

Crawler Dozer

Operating Weight
19,100 lb
Max Speed - Forward
5.0 mph
Net Power
90.0 hp
All crawler dozers

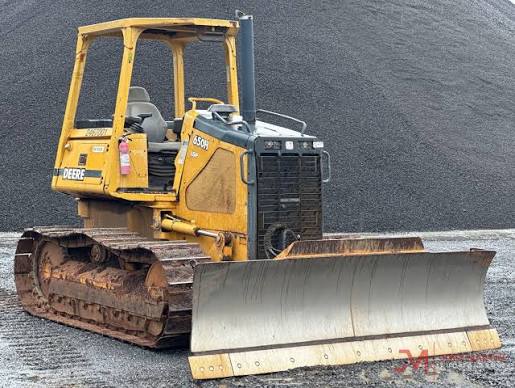

John Deere 650H LGP Crawler Dozer
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight19,100 lb
Fuel Capacity47.0 gal
Cooling System Fluid Capacity4.3 gal
Final Drives Fluid Capacity1.8 gal
Engine Oil Capacity3.7 gal
Hydraulic Fluid Capacity8.5 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Model4045T
Displacement276 in³
Power Measured @2,200 rpm
Net Power90.0 hp
Number of Cylinders4
AspirationAltitude-compensating turbocharger
Torque Measured @1,200 rpm
Max Torque316 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.0 gal/min
Relief Valve Pressure3,000 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab109 in
Length of Track on Ground88 in
Width Over Tracks97 in
Length w/o Blade161 in

Transmission

Transmission specifications
Max Speed - Forward5.0 mph
Max Speed - Reverse5.0 mph
Transmission TypeDual-path electronic-controlled hydrostatic drive

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side6
Number of Shoes per Side38
Standard Shoe Size28 in
Ground Contact Area4,872 in³
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width115 in
Height33 in
Capacity2.30 yd³
Blade Angle (both directions)22 °
