Liebherr
LR614
Crawler Loader
36 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 33,950 lb |
|---|---|
| Bucket Capacity - heaped | 2.39 yd³ |
| Max Speed | 6.8 mph |
| Fuel Capacity | 68.7 gal |
| Static Tipping Load | 23,082 lb |
| Breakout Force Bucket | 27,675 lb |
| Cooling System Fluid Capacity | 18.0 gal |
| Hydraulic System Fluid Capacity | 34.4 gal |
| Final Drive Fluid Capacity - each | 2.3 gal |
| Engine Oil Capacity | 5.3 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | D 924 T-EA1 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 130.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Water-Cooled and Turbocharged |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 450 lb-ft |
Hydraulic System
| Pump Flow Capacity | 41.0 gal/min |
|---|---|
| Lower Time | 2.1 s |
| Raise Time | 6.5 s |
| Relief Valve Pressure | 3,770 psi |
| Dump Time | 1.5 s |
| Pump Type | Variable-Displacement piston pump with load-sensing proportional pump flow control |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 124 in |
| Width to Outside of Tracks | 86 in |
| Length with Bucket on Ground | 243 in |
| Clearance at Full Height and Dump | 111 in |
| Reach at Dump Height | 43 in |
| Length to Front of Track | 172 in |
Undercarriage
| Length of Track on Ground | 98 in |
|---|---|
| Track Gauge | 66 in |
| Track Shoe Width | 20 in |
| Ground Pressure | 9 psi |
| Number of Track Rollers per Side | 6 |
| Ground Contact Area | 3,902 in³ |
| Number of Shoes per Side | 42 |
Comparable machines

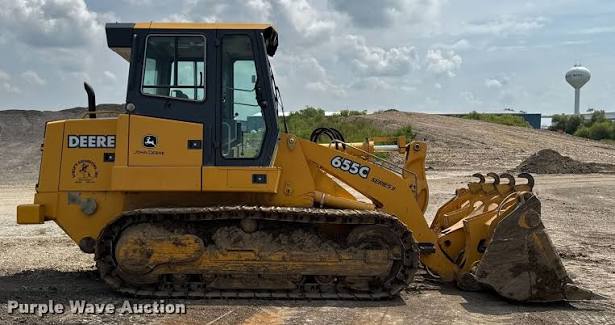

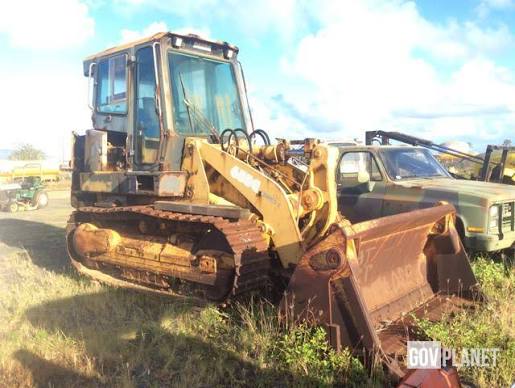

Other crawler loaders in a similar weight class.
