John Deere
690E
- Operating Weight
- 44,230 lb
- Max Digging Depth
- 233 in
- Max Digging Depth
- 260 in
- Net Power
- 130.0 hp
1 / 5

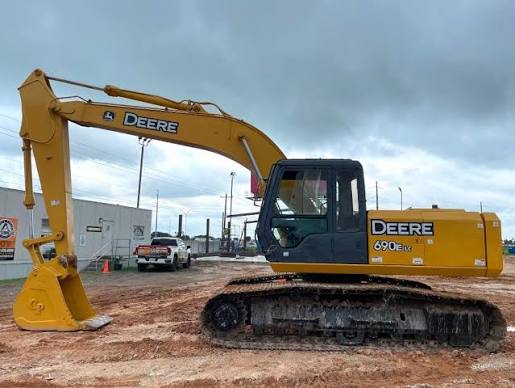

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 44,230 lb |
|---|---|
| Fuel Capacity | 85.0 gal |
| Hydraulic Pump Flow Capacity | 100.0 gal/min |
| Hydraulic System Fluid Capacity | 84.0 gal |
| Hydraulic System Relief Valve Pressure | 5,000 psi |
| Engine Oil Capacity | 20.0 gal |
| Cooling System Fluid Capacity | 44.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 140.0 hp |
| Net Power | 130.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 424 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 113 in |
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 104 in |
| Width to Outside of Tracks | 120 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 26 in |
| Number of Shoes per Side | 49 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 40,300 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 233 in |
|---|---|
| Max Reach Along Ground | 356 in |
| Max Loading Height | 256 in |
| Max Vertical Wall Digging Depth | 191 in |
| Max Cutting Height | 361 in |
| Shipping Length of Unit | 373 in |
| Shipping Height of Unit | 114 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 260 in |
|---|---|
| Max Vertical Wall Digging Depth | 205 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 270 in |
| Max Reach Along Ground | 383 in |
| Shipping Length of Unit | 371 in |
| Shipping Height of Unit | 114 in |
