John Deere

710G

Backhoe Loader

Bucket Capacity
1.90 yd³
Max Speed
23.0 mph
Net Power
122.0 hp
All backhoe loaders

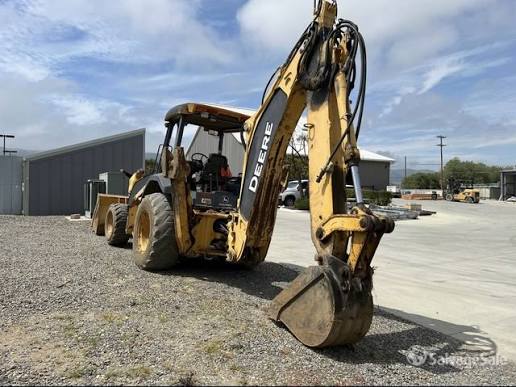

John Deere 710G Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 2wd26,500 lb
Fuel Capacity69.0 gal
Hydraulic System Fluid Capacity42.0 gal
Cooling System Fluid Capacity7.2 gal
Tire Size Front - 2wd / 4wd15-19.5SS-1
Operating Voltage12 V
Oil System Fluid Capacity5.1 gal
Alternator Supplied Amperage90 A
Turning Radius127 in
Transmission Fluid Capacity4.0 gal
Max Weight23,000 lb
Rear Axle Fluid Capacity4.2 gal
Front Axle Fluid Capacity2.8 gal

Engine

Engine specifications
Engine Model6068T
Power Measured @2,000 rpm
Net Power122.0 hp
AspirationTurbocharged
Torque Measured @1,300 rpm
Net Max Torque397 lb-ft
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity52.0 gal/min
Relief Valve Pressure3,625 psi
Pump TypeAxial-piston PCLS system

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase100 in
Transport Width96 in
Transport Length322 in
Height to Top of Suspended Cab118 in

Transmission

Transmission specifications
Max Speed23.0 mph
Max Speed - Reverse16.1 mph
Number of Forward Gears4
Number of Reverse Gears3
Transmission Type4-speed helical cut gear full power-shifted transmission with hydraulic reverser

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size21L-28R4

Backhoe

Backhoe specifications
Dig Depth215 in
Reach From Swivel270 in
Dig Depth - Extended270 in
Load Height - Extended192 in
Bucket Dig Force17,000 lb
Reach From Swivel - Extended320 in
Reach at Load Height - Extended371 in
Bucket Dig Force - Extended17,000 lb

Loader

Loader specifications
Bucket Capacity1.90 yd³
Clearance at Max Dump Height113 in
Bucket Breakout Force14,800 lb
Bucket Width36 in
Reach at Max Dump Height364 in
Dig Depth4 in
