434E
Backhoe Loader
37 specifications
1 / 5

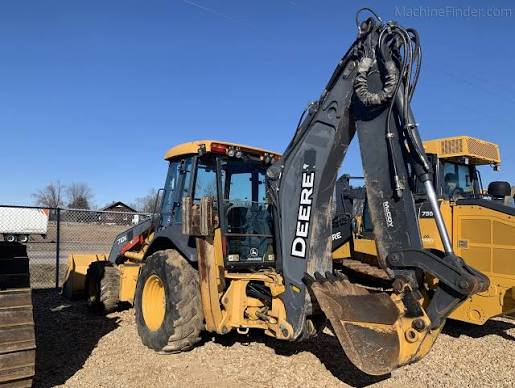

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight 2wd | 23,797 lb |
|---|---|
| Fuel Capacity | 69.0 gal |
| Hydraulic System Fluid Capacity | 39.6 gal |
| Cooling System Fluid Capacity | 9.0 gal |
| Tire Size Front - 2wd / 4wd | 14.5/75-16.110PR F3 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 5.2 gal |
| Alternator Supplied Amperage | 120 A |
| Turning Radius | 173 in |
| Transmission Fluid Capacity | 4.0 gal |
| Max Weight | 26,742 lb |
| Rear Axle Fluid Capacity | 4.3 gal |
| Front Axle Fluid Capacity | 2.4 gal |
Engine
| Engine Model | E 6068HT079 |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 130.1 hp |
| Aspiration | Turbocharged |
| Engine Make | John Deere PowerTech |
| Net Max Torque | 405 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 52.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,625 psi |
| Pump Type | Axial-piston pump |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 103 in |
| Transport Width | 91 in |
| Transport Length | 324 in |
| Height to Top of Suspended Cab | 119 in |
Transmission
| Max Speed | 21.8 mph |
|---|---|
| Max Speed - Reverse | 16.5 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Transmission Type | Powershift |
Tires & Wheels
| Rear Tires Size | 21L-2416PR R4 |
|---|
General Specifications
| Operating Weight lbs (kg) | 23,802 (10,796) Starting 2014 Model Year |
|---|---|
| Max Digging Depth ft. (m) | 17.8 (5.44) Starting 2014 Model Year |
| Backhoe Loading Height ft. (m) | 14.2 (4.34) Starting 2015 Model Year |
| Travel Speed 4th Gear Fwd MPH (kmh) | 21.8 (35.2) Starting 2013 Model Year |
| Loader SAE HP (kw) | 130 (97) Starting 2013 Model Year |
| Loader Lift Capacity lbs. (kg) | 9,277 (4,212) Starting 2015 Model Year |
| Loader Breakout Force lbs. (kg) | 15,540 (7,049) Starting 2015 Model Year |
Backhoe
| Dig Depth | 205 in |
|---|---|
| Reach From Swivel | 271 in |
| Dig Depth - Extended | 269 in |
| Load Height - Extended | 204 in |
| Bucket Dig Force | 17,000 lb |
| Reach From Swivel - Extended | 313 in |
| Load Height | 172 in |
Loader
| Bucket Capacity | 1.70 yd³ |
|---|---|
| Lift Capacity | 9,277 lb |
| Clearance at Max Dump Height | 117 in |
| Bucket Breakout Force | 15,540 lb |
| Bucket Width | 97 in |
| Reach at Max Dump Height | 326 in |
| Dig Depth | 4 in |
