John Deere

724J High-Lift

Wheel Loader

Operating Weight
40,671 lb
Bucket Capacity - heaped
4.50 yd³
Net Power
215.0 hp
All wheel loaders

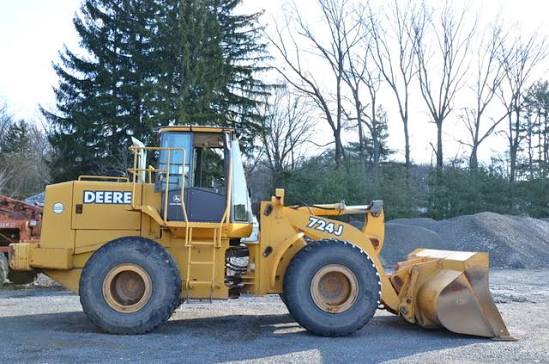

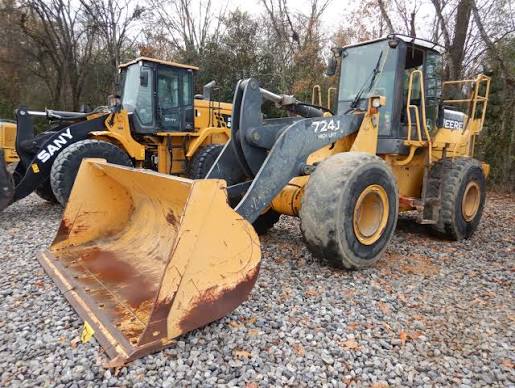

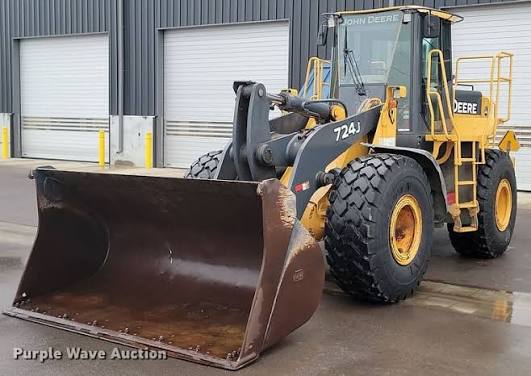

John Deere 724J High-Lift Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,671 lb
Fuel Capacity100.0 gal
Tire Size23.5 R25
Hydraulic System Fluid Capacity31.0 gal
Static Tipping Weight27,432 lb
Operating Voltage24 V
Turning Radius216 in
Engine Oil Fluid Capacity6.7 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity5.9 gal
Rear Axle/Diff Fluid Capacity5.9 gal
Cooling System Fluid Capacity8.2 gal
Transmission Fluid Capacity6.9 gal

Engine

Engine specifications
Engine Model6081h
Displacement496 in³
Power Measured @2,200 rpm
Net Power215.0 hp
Number of Cylinders6
AspirationTurbocharged charge air cooled
Torque Measured @1,300 rpm
Torque Rise49.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity74.0 gal/min
Raise Time6.0 s
Lower Time3.0 s
Dump Time1.2 s
Relief Valve Setting3,600 psi
Pump TypeVariable axial piston

Dimensions

Dimensions specifications
Ground Clearance212 in
Height - Top of Cab134 in
Wheelbase126 in
Width Over Tires1,310 in
Length with Bucket on Ground339 in
Hinge Pin - Max Height180 in

Transmission

Transmission specifications
Max Speed - Forward22.0 mph
Max Speed - Reverse15.5 mph
Transmission TypeAutomatic Powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped4.50 yd³
Dump Clearance at Max Raise132 in
Breakout Force30,610 lb
Bucket Width1,370 in
