John Deere

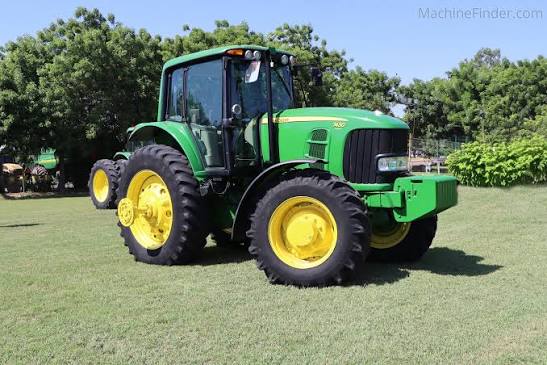

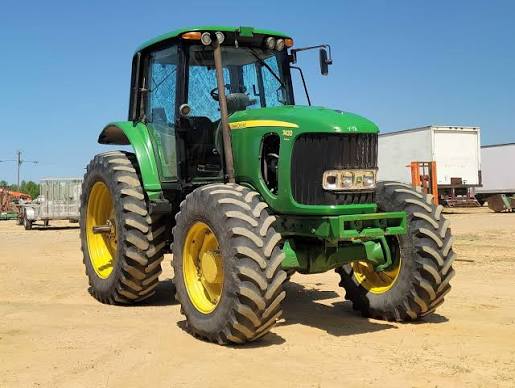

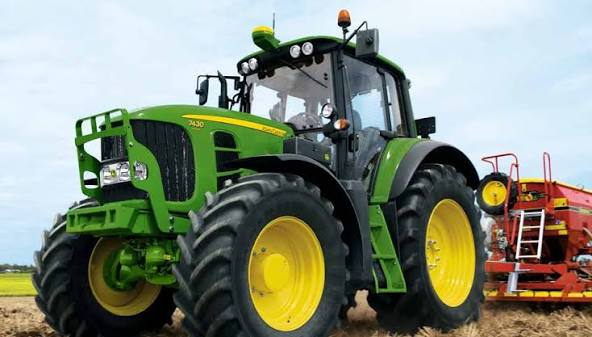

7430 Premium Cab Tractor
- Operating Weight
- 14,595 lb
- Displacement
- 415 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 166.0 hp
1 / 5
Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 14,595 lb |
|---|---|
| Fuel Capacity | 80.6 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 10,600 lb |
| Turning Radius | 181 in |
| Tire Size Front - 2wd / 4wd | 16.9R28 |
Engine
| Engine Model | 6.8L PowerTech Plus |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 166.0 hp |
| Aspiration | turbocharged |
| Engine Make | 2240 |
| PTO Power | 140.0 hp |
Hydraulic System
| Pump Flow Capacity | 29.1 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Relief Valve Setting | 2,900 psi |
Dimensions
| Wheelbase | 107 in |
|---|
Transmission
| Max Speed | 18.7 mph |
|---|---|
| Number of Forward Gears | 16 |
| Transmission Type | PowrQuad Plus 16/16 |
| Number of Reverse Gears | 16 |
Tires & Wheels
| Rear Tires Size | 18.4R42 |
|---|
