John Deere
744E
- Operating Weight
- 46,310 lb
- Bucket Capacity - heaped
- 5.00 yd³
- Gross Power
- 260.0 hp
- Net Power
- 250.0 hp
1 / 5

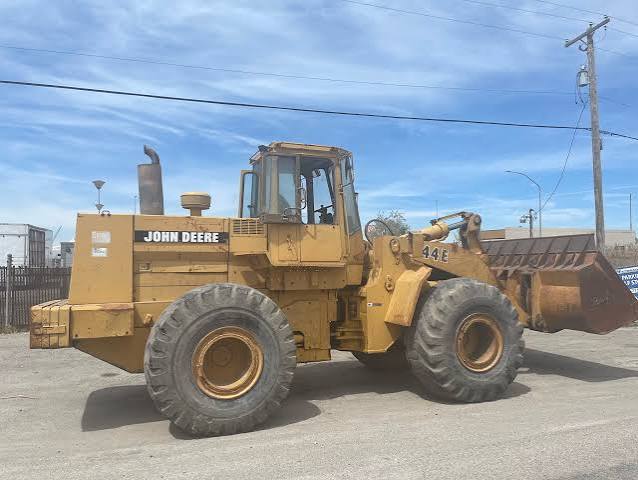

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 46,310 lb |
|---|---|
| Fuel Capacity | 87.0 gal |
| Tire Size | 23.5-25 |
| Hydraulic System Fluid Capacity | 42.6 gal |
| Static Tipping Weight | 33,755 lb |
| Operating Voltage | 24 V |
| Turning Radius | 243 in |
| Engine Oil Fluid Capacity | 8.5 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 8.8 gal |
| Rear Axle/Diff Fluid Capacity | 9.3 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Transmission Fluid Capacity | 10.1 gal |
Engine
| Engine Model | 6101AT |
|---|---|
| Displacement | 619 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 260.0 hp |
| Net Power | 250.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged with Aftercooler |
| Torque Measured @ | 1,700 rpm |
| Torque Rise | 34.0 % |
Hydraulic System
| Pump Flow Capacity | 82.0 gal/min |
|---|---|
| Raise Time | 6.4 s |
| Lower Time | 3.5 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,129 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 134 in |
| Width Over Tires | 111 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 317 in |
| Hinge Pin - Max Height | 165 in |
Transmission
| Max Speed - Forward | 25.8 mph |
|---|---|
| Max Speed - Reverse | 28.0 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.00 yd³ |
|---|---|
| Bucket Capacity - struck | 4.30 yd³ |
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 42,463 lb |
| Bucket Width | 120 in |
